Hydraulic Hose, ID: 1/2 in
#GAT85684
Product Overview
Recommended for PetroleumûBase or Phosphate Ester Fluids; Diesel Fuels & Filtration Lines, Transmission Coolant Lines & Hot Lube Oil Lines.
Features & Benefits
- Recommended Couplings: C5 Field Attachable, C5X Field Attachable (Sizes 5, 8, & 12).
- C5D (Sizes 4 - 12) Meets or Exceeds DOTFMVSS 106û74 Type All, SAE J1402 Type All & SAE J1405 & Fuel Resistance of SAE J30R2. Not Approved for Biodiesel.
- Also Recommended for Power Steering (Caution: Intended for HeavyûDuty Commercial Vehicle Use Only), Gasoline & Turbocharger Oil Supplies. Tilt Cab Cylinder & Air Brakes.
- Federal Law Requires Registration w/ the Department of Transportation for Anyone Producing Air Brake Hose Assemblies w/ Swaged or Crimped Fittings.
- Temperature Range: -40 Deg F - +300 Deg F (-40 Deg C - +149 Deg C). For Air: to +250 Deg F (+121 Deg C) Only. Maximum Phosphate Esters: to +212 Deg F (+100 Deg C).
Specifications
| Color | Green |
| Coupling Recommendation | C5 Field Attachable |
| Cover Material | Green Polyester/Rubber Blend |
| Cover Type | Oil & Mildew Resistant |
| Dash Size | 10 |
| DOT Approved | Yes |
| Hose Inner Tube Material | CPE (Chlorinated Polyethylene) |
| Industrial Description | 10C5DX50FT |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 50 pi (15.24 m) |
| Maximum Pressure | 1250 psi (86.18 bar) |
| Minimum Burst Pressure (PSI) | 5000 psi (344.73 bar) |
| Outside Diameter | 59/64 in (2.34 cm) |
| Pressure | 1250 psi (86.18 bar) |

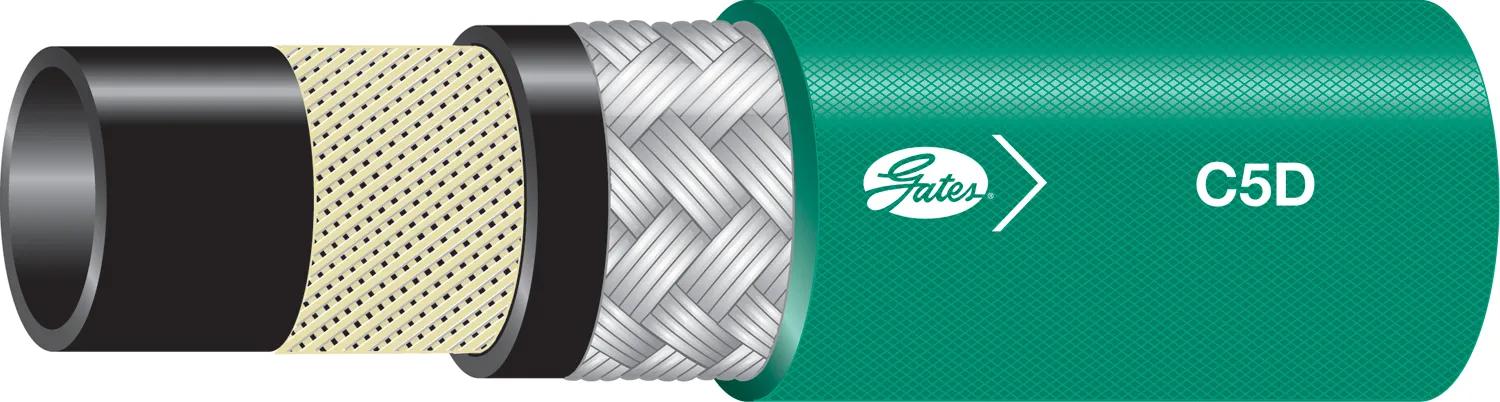

| Product Type | C5D High-Temp Multi-Fluid Hose |
| Radius | 2 in (5.08 cm) |
| Reinforcement | One Braid of High-Tensile Steel Wire Over One Braid of Polyester |
| Series of Hose Ends Used | Permanent Crimp And "Field Attachable C5" Series Fittings |
| Standard | SAE J1402 |
| Tube Description | Black, Oil & Heat Reistant, Synthetic Rubber |
| Type | Medium Pressure |
Interchanges & Equivalent parts:
| GUT10X50 |
| H16610 |
| H16910 |
| H56910 |
| 85684 |
| 10C5DX50FT |
| 9X2375 |
| FC35010 |
| FC35510 |
| 04030411 |
| 36580008 |
