Hydraulic Hose, ID: 1/2 in
#GAT85694
Product Overview
Recommended for Air Brake Hose, Power Steering (Caution: Intended for Heavy Duty Commercial Vehicle Use Only), Engine & Transmission Coolant Lines, & Hot (+300░F) Lube Oil Lines.
Features & Benefits
- Recommended Couplings: C5E Field Attachable, GlobalSpiral, MegaCrimp & Power Crimp. Please See Gates Ecrimp for Correct Fitting Recommendation.
- Federal Law Requires Registration w/ the Department of Transportation for Anyone Producing Air Brake Hose Assemblies w/ Swaged or Crimped Fittings.
- Not Recommended for Gasoline or Diesel Fuel. DOT FMVSS 106 Type A1, SAE J1405 & SAE J1402 Type A1 (Sizes 4 - 12).
- Temperature Range: -40 Deg F - +300 Deg F (-40 Deg C - +149 Deg C). For Air: +250 Deg F (+121 Deg C) Maximum.
Specifications
| Color | Black |
| Coupling Recommendation | C5E Field Attachable |
| Cover Material | Black Polyester/Rubber Blend With Green Stripe |
| Cover Type | Oil & Heat Resistant |
| Dash Size | 10 |
| DOT Approved | Yes |
| Hose Inner Tube Material | Nitrile |
| Industrial Description | 10C5EX50FT |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 50 pi (15.24 m) |
| Maximum Pressure | 1250 psi (86.18 bar) |
| Minimum Burst Pressure (PSI) | 5000 psi (344.73 bar) |
| Outside Diameter | 53/64 in (2.11 cm) |
| Pressure | 1250 psi (86.18 bar) |

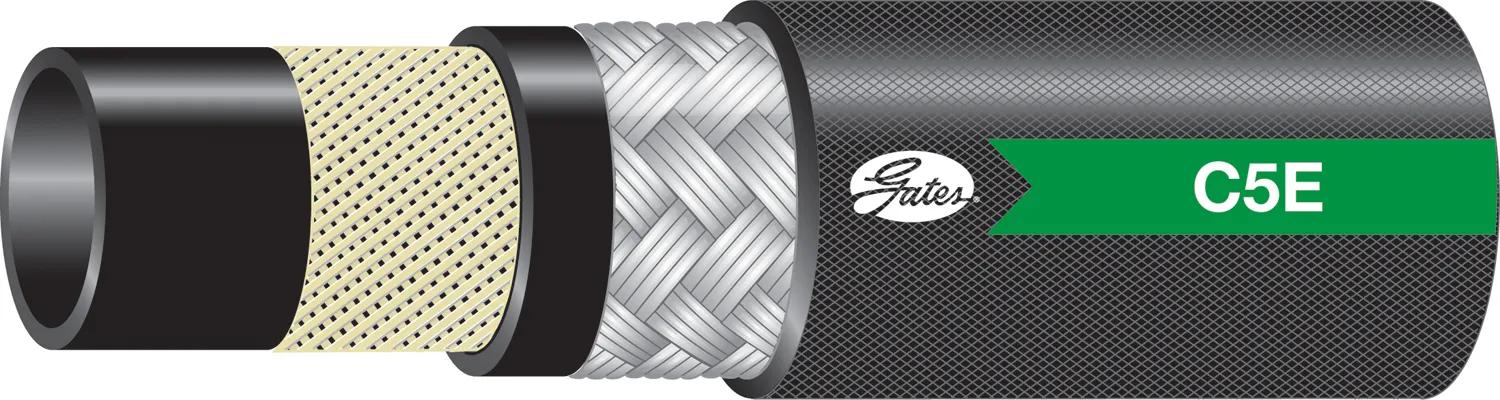

| Product Type | C5E High-Temp Flexline Hose |
| Radius | 2-19/64 in (5.84 cm) |
| Reinforcement | One Braid of High-Tensile Steel Wire Over One Braid of Polyester |
| Series of Hose Ends Used | Permanent Crimp And "Field Attachable C5E" Series Fittings |
| Standard | SAE J1402 |
| Tube Description | Black, Oil & Heat Resistant, Synthetic Rubber |
| Type | Medium Pressure |
Interchanges & Equivalent parts:
| GUT10X50 |
| H21310 |
| 030010 |
| 30010 |
| 85694 |
| 10C5EX50FT |
| GL10 |
| 04030448 |
| 36584994 |
