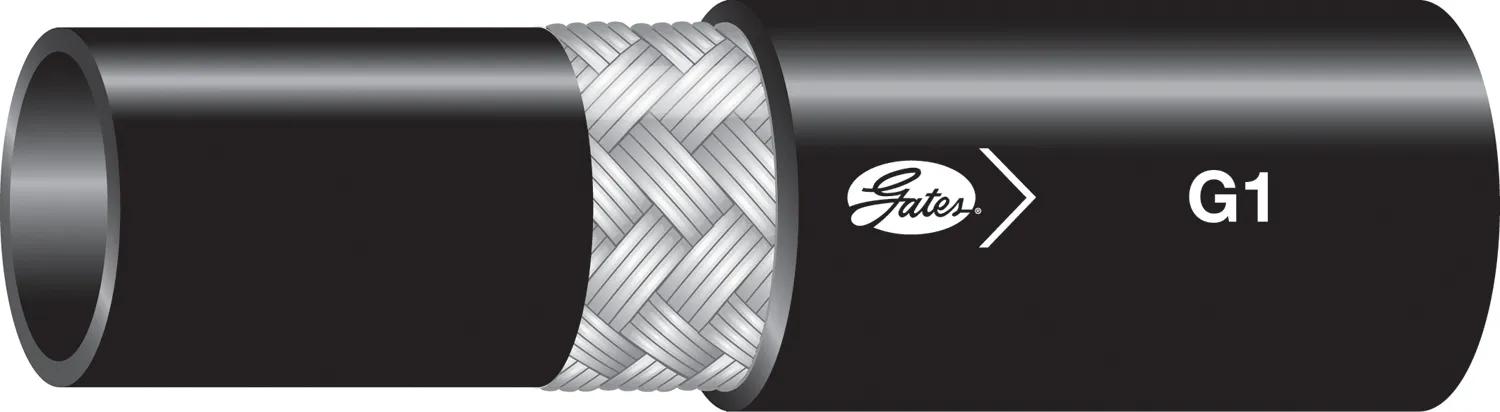

Hydraulic Hose, ID: 1/4 in, GlobalSpiral
#GAT86611
Product Overview
Recommended for Medium Pressure Hydraulic Lines. Meets or Exceeds the Requirements of SAE 100R1 Type S & ISO 1436 1SN R1, as Well as the Performance Requirements of EN 853 1SN. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C).
- Recommended Couplings: Field Attachable Type T, GlobalSpiral, GlobalSpiral Plus, MegaCrimp, MPGB (Size 3), Power Crimp (Size 3), Power Crimp Grease (Size 3) & Stainless Steel B (Sizes 4 - 12, 20 & 32).
Specifications
| Color | Black |
| Coupling Recommendation | Field Attachable T, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Nitrile/PVC - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 4 |
| Industrial Description | 4G1X50FT |
| Inside Diameter 1 (in) | 1/4 in (0.64 cm) |
| Length | 25 ft (7.62 m) |
| Maximum Pressure | 3275 psi (225.8 bar) |
| Minimum Burst Pressure (PSI) | 13100 psi (903.2 bar) |
| Outside Diameter | 17/32 in (1.35 cm) |
| Product Type | Global G1 1-Wire Braid Hose - SAE 100R1 Type AT |
| Radius | 4 in (10.16 cm) |
| Reinforcement | One Braid; High-Tensile Steel Wire |
| Standard | SAE 100R1 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Medium Pressure |
Interchanges & Equivalent parts:
| GR1SN04X50 |
| GR1SN04X50BX |
| H10404 |
| 86611 |
| H19004 |
| 012704 |
| 12704 |
| 4G1X50FT |
| R1A04 |
| R1T04 |
| SR1SN04 |
| E704A |
| 26814 |
| M04 |
| MX04 |
| 268104 |
| FC21104 |
| FC21104RL |
| FLEXOR1SNHT |
| GH66304 |
| 4214 |
| 04030097 |
| 46574940 |
