Hydraulic Hose, ID: 1/4 in
#GAT85534
Product Overview
Recommended for Ultra High Abrasive High-Pressure Hydraulic Oil Lines. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16 & ISO 1436 2SN R2 Working Pressure, Minimum Bend Radius Requirements & Performance Requirements of EN 857 2SC & EN 853 2SN.
Features & Benefits
- M2T Hose Has Smaller Exterior Dimensions & Significantly Tighter Bend Radius. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). MegaTuff Hose Lasts up to 300 Times Longer than Standard Hose During Hose-to-Hose & Hose-to-Metal Abrasion Tests Per ISO 6945.
- Recommended Couplings: GlobalSpiral (Sizes 6 - 16), MegaCrimp & Stainless Steel B.
Specifications
| Color | Black |
| Coupling Recommendation | MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Dash Size | 4 |
| Industrial Description | 4M2T-MTFX50FT |
| Inside Diameter 1 (in) | 1/4 in (0.64 cm) |
| Length | 50 ft (15.24 m) |
| Maximum Pressure | 6000 psi (413.68 bar) |
| Minimum Burst Pressure (PSI) | 24000 psi (1654.72 bar) |
| Outside Diameter | 9/16 in (1.42 cm) |

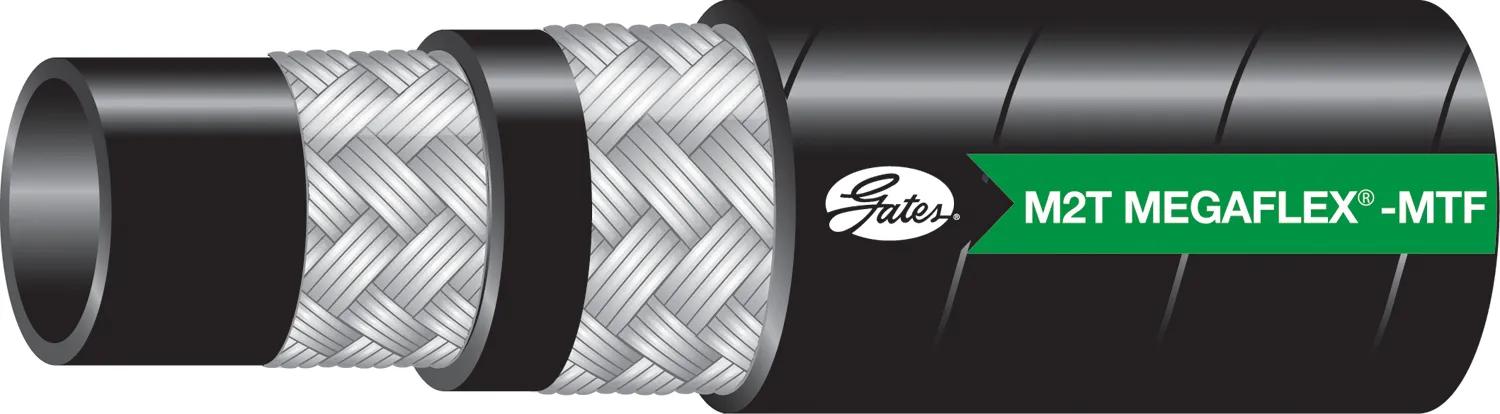

| Product Type | M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 - MegaTuff Cover |
| Radius | 1-1/2 in (3.81 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R16 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| 70387 |
| XR16SC04X50 |
| 85534 |
| 4M2TMTFX50FT |
| FC73504 |
| BXP04 |
| RT204 |
| 04029985 |
| 46574034 |
