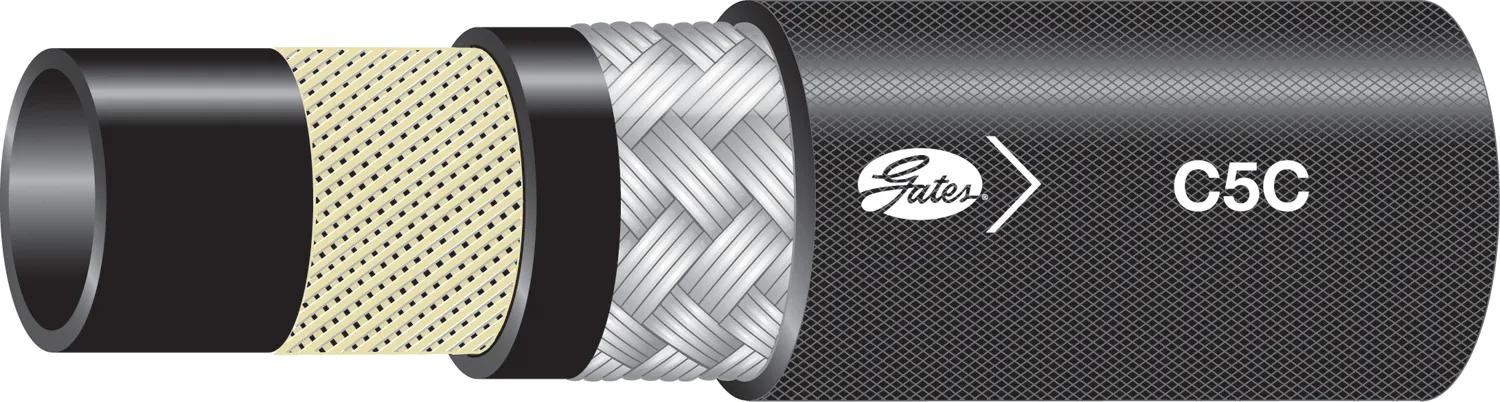

Hydraulic Hose, ID: 1/4 in
#GAT86606
Product Overview
Recommended for Medium Pressure Hydraulic PetroleumûBased Oil Lines in Impulse Applications, Lube Oil, Air & Water in Applications Such as Air Brakes.
Features & Benefits
- DOT FMVSS 106û74 Type AII and SAE J1402 Type AII for Air Brake Applications (Sizes 4 - 12).
- Also For Power Steering (Caution: Intended for Heavy Duty Commercial Vehicle Use Only), Turbocharger Oil Supplies, Tilt Cab Cylinders, Transmission Coolant & Filtration Lines.
- Federal Law Requires Registration w/ the Department of Transportation for Anyone Producing Air Brake Hose Assemblies w/ Swaged or Crimped Fittings.
- Temperature Range: Under SAE 100R5 (Hydraulic) Conditions: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). AllûPurpose Fleet Application (Hot Lube Oil Lines): -40 Deg F - +300░F (-40 Deg C - +149 Deg C).
- For Air: to +160 Deg F (+71 Deg C) only. Avoid Continuous Use at Maximum Temperature Concurrent w/ Maximum Working Pressures.
- Recommended Couplings: C5 Field Attachable, C5X Field Attachable (Sizes 5, 8 & 12), MegaCrimp & GlobalSpiral. Please See Gates Ecrimp for Correct Fitting Recommendation.
- Meets or Exceeds Requirements of SAE 100R5 for Traditional Hydraulic Applications. Not Recommended for Gasoline or Diesel Fuel.
Specifications
| Color | Black |
| Coupling Recommendation | C5 Field Attachable, C5X Field Attachable |
| Cover Material | Black Polyester Braid |
| Cover Type | Oil & Mildew Resistant |
| Dash Size | 5 |
| DOT Approved | Yes |
| Hose Inner Tube Material | Nitrile |
| Industrial Description | 5C5CX50FT |
| Inside Diameter 1 (in) | 1/4 in (0.64 cm) |
| Length | 25 ft (7.62 m) |
| Maximum Pressure | 3000 psi (206.84 bar) |
| Minimum Burst Pressure (PSI) | 12000 psi (827.36 bar) |
| Outside Diameter | 37/64 in (1.47 cm) |
| Pressure | 3000 psi (206.84 bar) |
| Product Type | C5C Hydraulic Hose - SAE 100R5 |
| Radius | 3-13/32 in (8.66 cm) |
| Reinforcement | One Braid of High-Tensile Carbon Steel Wire Over One Braid of Polyester |
| Series of Hose Ends Used | Permanent Crimp And "Field Attachable C5" Series Fittings |
| Standard | SAE 100R5 |
| Tube Description | Black, Oil & Heat Resistant Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| GR5-05X50 |
| GR505X50 |
| GYHGR5-05X50 |
| GR505X50BX |
| HR505X50 |
| H06905 |
| 010805 |
| 10805 |
| 86606 |
| 5C5CX50FT |
| 9X2363 |
| H16905 |
| 2012615 |
| Y905 |
| 150305 |
| 265105 |
| 26515 |
| 2015 |
| 04030379 |
| 36581763 |
