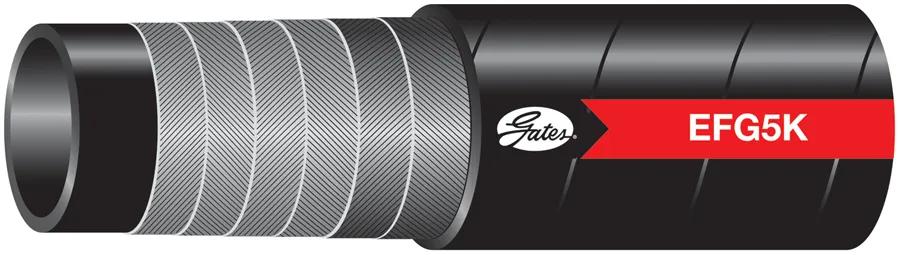

Hydraulic Hose, ID: 1 in, GlobalSpiral
#GAT85457
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, Stainless Steel S |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Dash Size | 16 |
| Industrial Description | 16EFG5KX25FT |
| Inside Diameter 1 (in) | 1 in |
| Length | 250 ft |
| Minimum Burst Pressure (PSI) | 20000 psi (1378.93 bar) |
| Outside Diameter | 1-17/32 in |
| Product Type | EFG5K Spiral Wire Hose - SAE 100R13 |
| Radius | 6 in |
| Reinforcement | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Standard | SAE 100R13 |
| Temperature Range | -40 °F to 250 °F |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Extremely High Pressure Hose |
Interchanges & Equivalent parts:
| SR1316X50 |
| H43016 |
| H47016 |
| H47116 |
| 040216 |
| 78116BX |
| 85457 |
| 16EFG5KX25FT |
| EQ311677 |
| HQ351677 |
| PA351677 |
| 1166800 |
| 5P0201 |
| FC27316 |
| 04029691 |
| 46514024 |
