Hydraulic Hose, ID: 1 in, GlobalSpiral
#GAT85578
Product Overview
Recommended for Petroleum & Water-Base Hydraulic Fluids in Suction Lines or in Low Pressure Return Lines. Meets or Exceeds Requirements of SAE 100R4. Uses Half the Bend Radius of SAE 100R4.
Features & Benefits
- Meets Marine ABS & DNV-GL w/ Use of HeatGuard High Temp Sleeve. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +275 Deg F (-40 Deg C - +135 Deg C). Recommended Coupling: GL, GlobalSpiral Plus & MegaCrimp (Sizes 12 – 20) (Use Clamp Over Beaded Nipple).
Specifications
| Couleur | Black |
| Recommandation d'accouplement | GL, MegaCrimp |
| Matériau du couvercle | Synthetic Rubber - Neoprene - Type A |
| Type de housse | Type A - Flame, Oil & Abrasion Resistant |
| Dash Size | 16 |
| Description industrielle | 16GMVX25FT |
| Diam. intérieur 1 (po) | 1 po (2,54 cm) |
| Longueur | 250 ft (76,2 m) |
| Maximum Pressure | 300 psi (20.68 bar) |
| Minimum Burst Pressure (PSI) | 1200 psi (82.74 bar) |
| Outside Diameter | 1-29/64 in (3.68 cm) |

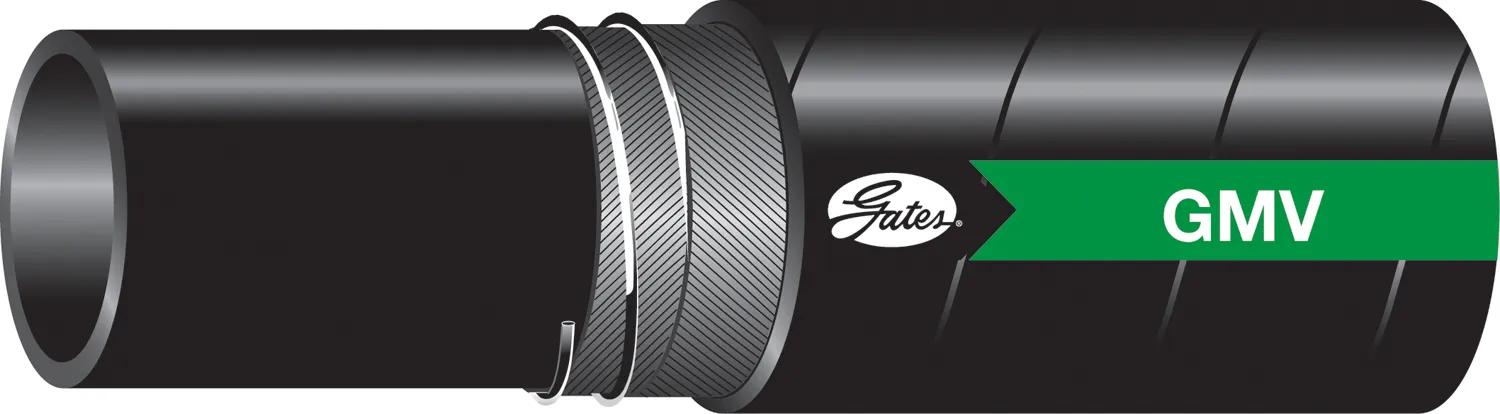

| Product Type | GMV Global MegaVac Return Line & Suction Hose |
| Radius | 3 in (7.62 cm) |
| Reinforcement | Double Spiral Braid w/ Helical Spiral-Wire |
| Standard | SAE 100R4 |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Tube Description | Black, Synthetic Rubber |
| Type | Basse pression |
| Vacuum Rating | 25 inhg (12.28 psi) |
Interchanges & Equivalent parts:
| H03916 |
| 011316 |
| 11316 |
| 85578 |
| 16GMVX25FT |
| 04030267 |
