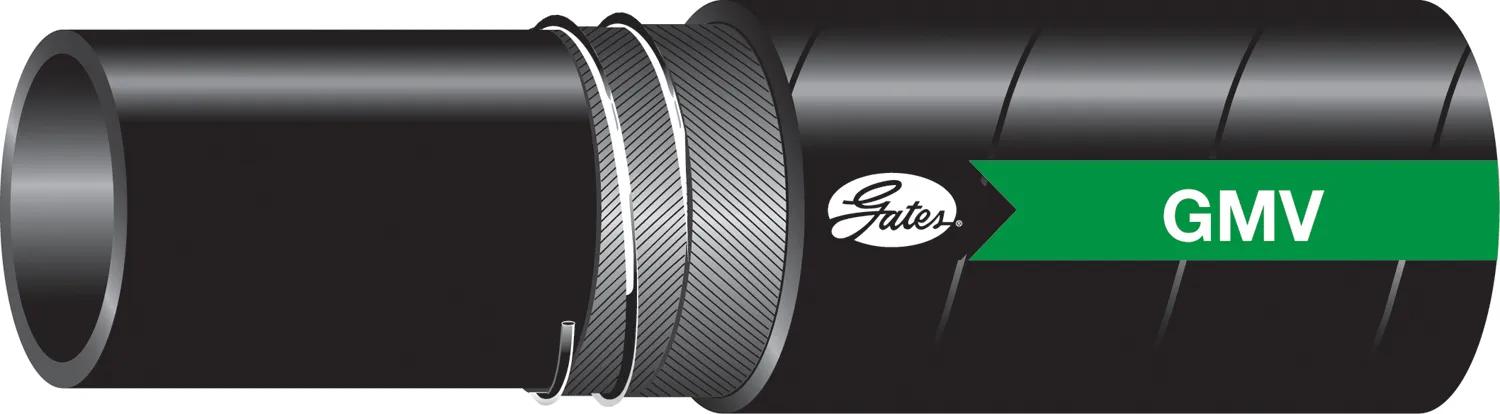

Hydraulic Hose, ID: 1 in, MegaCrimp
#GAT85579
Product Overview
Recommended for Petroleum & Water-Base Hydraulic Fluids in Suction Lines or in Low Pressure Return Lines. Meets or Exceeds Requirements of SAE 100R4. Uses Half the Bend Radius of SAE 100R4.
Features & Benefits
- Meets Marine ABS & DNV-GL w/ Use of HeatGuard High Temp Sleeve. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +275 Deg F (-40 Deg C - +135 Deg C). Recommended Coupling: GL, GlobalSpiral Plus & MegaCrimp (Sizes 12 – 20) (Use Clamp Over Beaded Nipple).
Specifications
| Color | Black |
| Coupling Recommendation | GL, MegaCrimp |
| Cover Material | Synthetic Rubber - Neoprene - Type A |
| Cover Type | Type A - Flame, Oil & Abrasion Resistant |
| Dash Size | 20 |
| Industrial Description | 20GMVX25FT |
| Inside Diameter 1 (in) | 1 in (2.54 cm) |
| Length | 50 ft (15.24 m) |
| Maximum Pressure | 250 psi (17.24 bar) |
| Minimum Burst Pressure (PSI) | 1000 psi (68.95 bar) |
| Outside Diameter | 1-49/64 in (4.5 cm) |
| Product Type | GMV Global MegaVac Return Line & Suction Hose |
| Radius | 4 in (10.16 cm) |
| Reinforcement | Double Spiral Braid w/ Helical Spiral-Wire |
| Standard | SAE 100R4 |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Tube Description | Black, Synthetic Rubber |
| Type | Low Pressure |
| Vacuum Rating | 25 inhg (12.28 psi) |
Interchanges & Equivalent parts:
| 85579 |
| H03920 |
| 011320 |
| 11320 |
| 20GMVX25FT |
| 04030268 |
