Hydraulic Hose, ID: 1 in, MegaCrimp
#GAT85803
Product Overview
Recommended for Extremely High-Temperature High-Pressure Hydraulic Applications Where Pressure or Temperature Requirements Exceed SAE 100R2, ISO 1436 2SN R2 & EN 853 2SN.
Features & Benefits
- Or Where Resistance to Either Petroleum-Base or Phosphate Ester Fluids is Required. Meets SAE J1942 Requirements. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +300 Deg F (Petroleum-Based Fluids); -40 Deg F - +212 Deg F (Phosphate Ester Fluids). Recommended Couplings: GlobalSpiral, GlobalSpiral Plus, MegaCrimp & Stainless Steel B (Sizes 24 & 32).
Specifications
| Color | Blue |
| Coupling Recommendation | GlobalSpiral, MegaCrimp |
| Cover Material | Thin Synthetic Rubber - CSM - Type M |
| Cover Type | Oil, Abrasion & Flame Resistant |
| Dash Size | 16 |
| Industrial Description | 16G2XHX50FT |
| Inside Diameter 1 (in) | 1 in (2.54 cm) |
| Length | 100 ft (30.48 m) |
| Maximum Pressure | 2500 psi (172.37 bar) |
| Minimum Burst Pressure (PSI) | 10000 psi (689.46 bar) |
| Outside Diameter | 1-31/64 in (3.76 cm) |

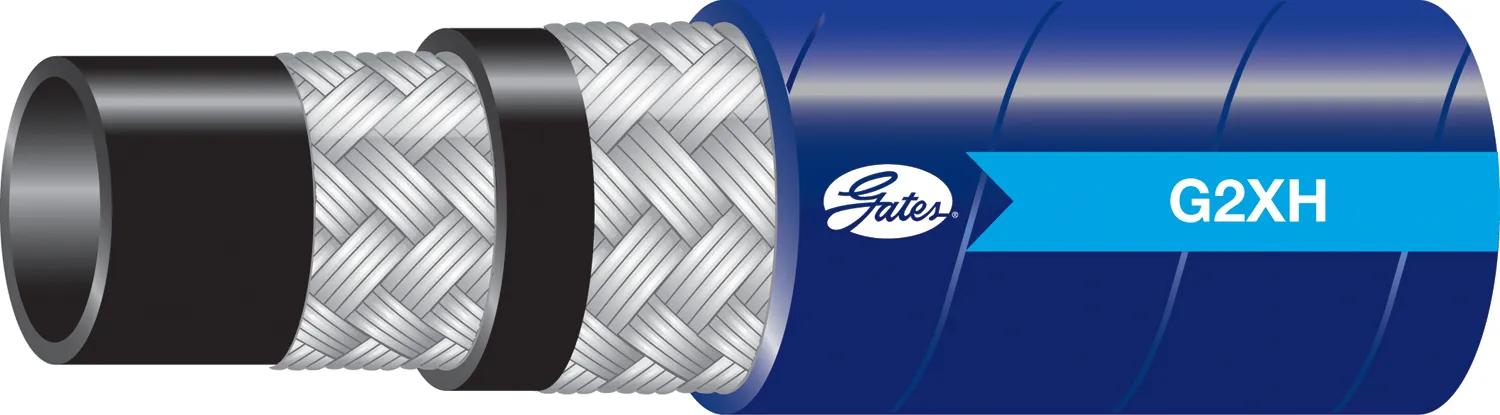

| Product Type | Global G2XH 2-Wire Braid Xtreme Heat Hose - SAE 100R2 Type S |
| Radius | 12 in (30.48 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R2 |
| Temperature Range | -40°F @ 300°F Petroleum-Base Fluid, -40°F @ 212°F Phosphate Ester Fluids |
| Tube Description | Black, Oil & Chemical-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| 40016 |
| 85803 |
| 16G2XHX50FT |
| NW2116 |
| DR2SN16 |
| DT16 |
| F216 |
| FC19516 |
| FC51016 |
| GH19516 |
| 04030042 |
| 46574013 |
