Hydraulic Hose, ID: 1 in
#GAT85539
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Dash Size | 16 |
| End 1 Diameter | 1-25/64 in |
| Industrial Description | 16M2T-MTFX50FT |
| Inside Diameter 1 (in) | 1 in |
| Length | 50 ft |
| Maximum Pressure | 2500 psi (172.37 bar) |
| Minimum Burst Pressure (PSI) | 10000 psi (689.46 bar) |
| Outside Diameter | 1-25/64 in |

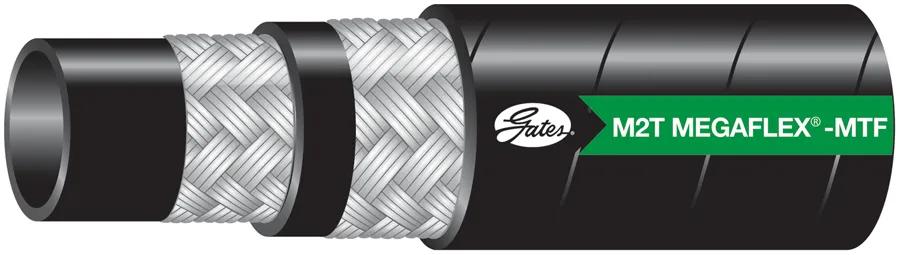

| Product Type | M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 - MegaTuff Cover |
| Radius | 4-1/2 in |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R16 |
| Temperature Range | -40 °F to 212 °F |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Hydraulic Hose |
Interchanges & Equivalent parts:
| XR16SC16X50 |
| 85539 |
| 16M2TMTFX50FT |
| BPX16 |
| RT216 |
| 04029990 |
| 46574039 |
