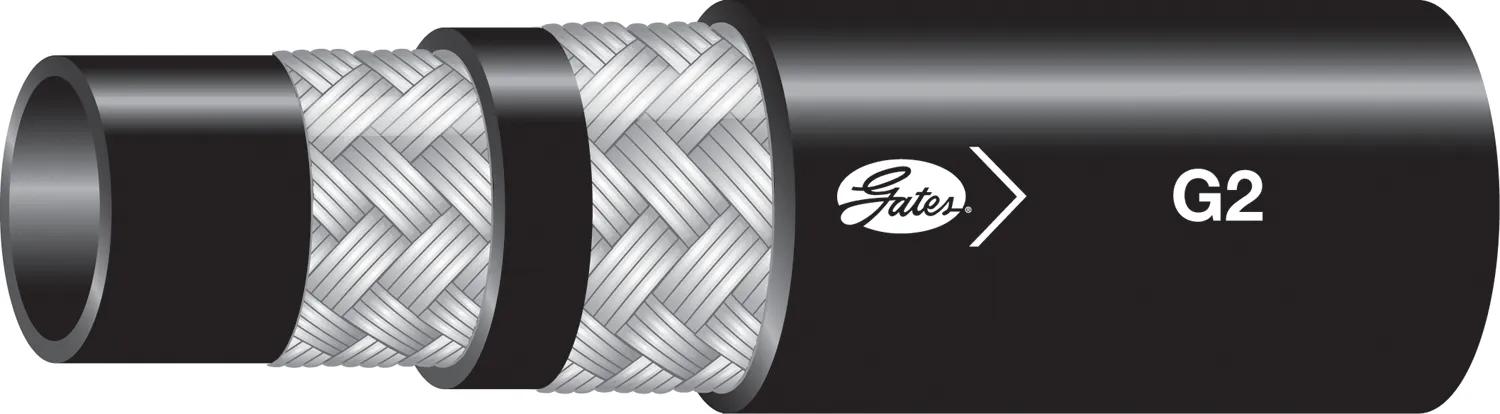

Hydraulic Hose, ID: 1 in
#GAT86625
Product Overview
Recommended for High-Pressure Hydraulic Oil Lines. Meets or Exceeds the Requirements of SAE 100R2, ISO1436 2SN R2 & EN 853 2SN. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Recommended Couplings: Field Attachable Type T (Sizes 4 – 24), GlobalSpiral, GlobalSpiral Plus, MegaCrimp, Power Crimp (Size 3) & Stainless Steel B.
- Temperature Range: -40 Deg F to +212 Deg F (-40 Deg C to +100 Deg C).
Specifications
| Couleur | Black |
| Recommandation d'accouplement | Field Attachable Type T, GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Industrial Description | 16G2X50FT |
| Inside Diameter 1 (in) | 1 po (2,54 cm) |
| Length | 220 pi (67,06 m) |
| Maximum Pressure | 2400 psi (165.47 bar) |
| Minimum Burst Pressure (PSI) | 9600 psi (661.89 bar) |
| Outside Diameter | 1-15/32 in (3.73 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber (Nitrile - Type C) |
| Type | Haute pression |
Interchanges & Equivalent parts:
| GR2SN16X50 |
| GYHGR2SN-16X50 |
| GR2SN16X50BX |
| H42516 |
| 010216 |
| 10216 |
| 86625 |
| 16G2X50FT |
