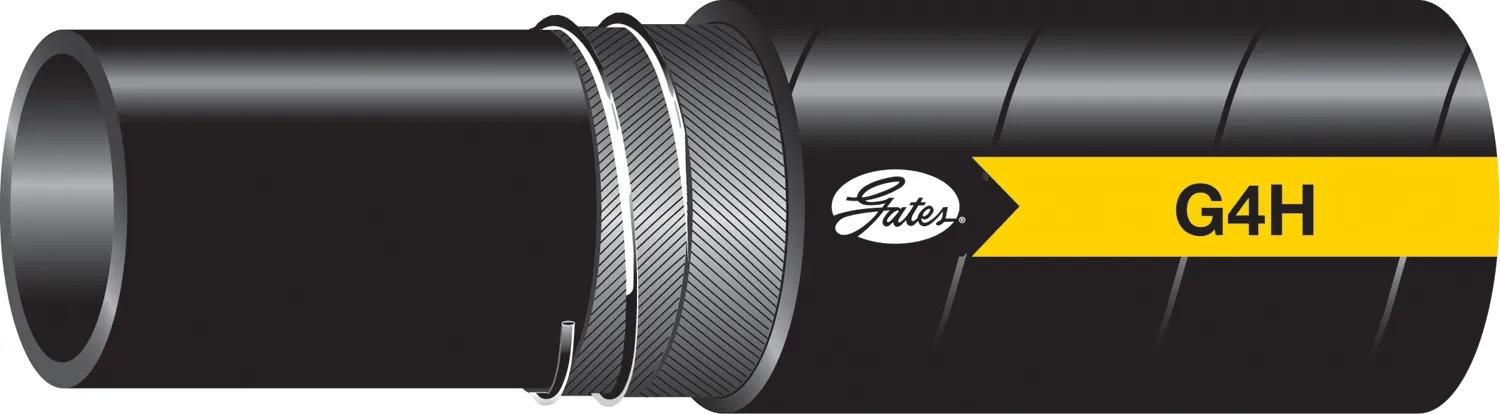

Hydraulic Hose, ID: 3/4 in
#GAT85580
Product Overview
Recommended for Petroleum & Water-Base Hydraulic Fluids in Suction Lines or in Low Pressure Return Lines. Meets or Exceeds Requirements of SAE 100R4 (Except 1" I.D.). Uses Half the Bend Radius of SAE 100R4.
Features & Benefits
- Meets Flame Resistance Acceptance Designation MSHA 2G. Temperature Range: -40 Deg F - +275 Deg F (-40 Deg C - +135 Deg C). Recommended Couplings: MegaCrimp (Sizes 12 & 16) (Use Clamp Over Beaded Nipple).
Specifications
| Color | Black |
| Coupling Recommendation | MegaCrimp |
| Cover Material | Synthetic Rubber - Neoprene - Type A |
| Cover Type | Type A - Flame, Oil & Abrasion Resistant |
| Industrial Description | 12G4HX25FT |
| Inside Diameter 1 (in) | 3/4 in (1.91 cm) |
| Length | 250 ft (76.2 m) |
| Maximum Pressure | 300 psi (20.68 bar) |
| Minimum Burst Pressure (PSI) | 1200 psi (82.74 bar) |
| Outside Diameter | 1-5/32 in (2.94 cm) |
| Reinforcement | Double Spiral Textile Reinforced w/ a Helical Spiral-Wire to Prevent Collapse |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Tube Description | Black, Synthetic Rubber (Nitrile - Type C) |
| Type | Low Pressure |
| Vacuum Rating | 25 inhg (12.28 psi) |
Interchanges & Equivalent parts:
| 010272 |
| 85580 |
| 12G4HX25FT |
