Hydraulic Hose, ID: 3/8 in
#GAT71017
Product Overview
Recommended for Petroleum & Synthetic Hydraulic Fluids. Applications Include: Power & Telephone Mobile Equipment (Cherry Pickers), Lubrication Lines, Blowout Preventer Control Lines, Hydraulic Lifts & Farm & Construction Machinery.
Features & Benefits
- Orange Color TH7NC Meets SAE 100R7 NonûConductivity Requirements & Meets or Exceeds Performance Requirements of SAE 100R7 w/ a Significantly Tighter Bend Radius. Meets ANSI A92.2 for Vehicle Mounted Aerial Devices (Sizes 4 û 8).
- Temperature Range: -65 Deg F - +200 Deg F (-54 Deg C - +93 Deg C) (Petroleum & Synthetic Oils), to +158 Deg F (+70 Deg C) (Water/Oil & Water Glycol).
- Recommended Couplings: MegaCrimp & Swage PCTS (Sizes 2 & 3).
Specifications
| Color | Orange |
| Coupling Recommendation | MegaCrimp |
| Cover Material | Urethane - Non-Perforated for Applications Requiring Electrical Non-Conductivity |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Dash Size | 6 |
| Industrial Description | 6TH7NCXCTN |
| Inside Diameter 1 (in) | 3/8 in (0.97 cm) |
| Length | 50 pi (15.24 m) |
| Material | Nylon |
| Maximum Pressure | 2250 psi (155.13 bar) |
| Minimum Burst Pressure (PSI) | 9000 psi (620.52 bar) |
| Outside Diameter | 41/64 in (1.63 cm) |

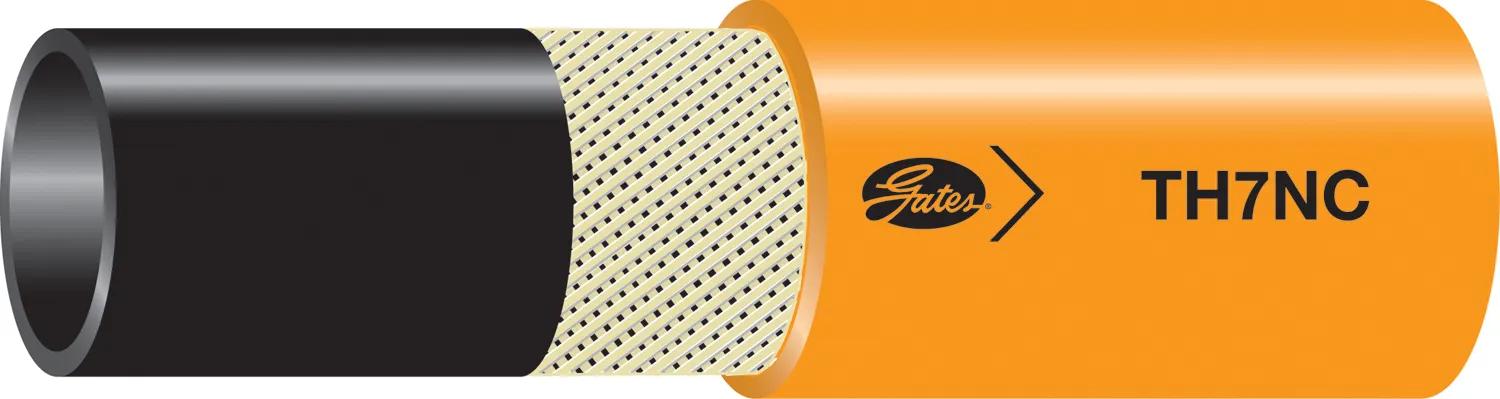

| Product Type | TH7NC Non-Conductive Hydraulic Hose - SAE 100R7 |
| Radius | 2-3/4 in (6.99 cm) |
| Reinforcement | Synthetic Fiber (Except -2) |
| Standard | SAE 100R7 |
| Temperature Range | -65°F @ 200°F Petroleum & Synthetic Oils, @ 158°F Water/Oil & Water Glycol |
| Tube Description | Nylon |
| Type | Medium Pressure |
Interchanges & Equivalent parts:
| NR706X250 |
| H43506250R |
| 013656 |
| 13656 |
| 518C6500CL |
| 518C66SL |
| 518C6SL |
| 71017 |
| 6TH7NCXCTN |
| 3TR7N06250BX |
| FC37306RL |
| 518D6 |
| 04030561 |
| 44671173 |
