Hydraulic Hose, ID: 3/8 in
#GAT85417
Product Overview
Recommended for Use w/ Petroleum, Water-Base & Synthetic Hydraulic Fluids. Applications Include: Power & Telephone Mobile Equipment (Cherry Pickers), Lubrication Lines, Blowout Preventer Control Lines, Hydraulic Lifts & Farm & Construction Machinery.
Features & Benefits
- Recommended Couplings: MegaCrimp & Swage PCTS (Size 3 Only).
- TH8 Hose Meets or Exceeds Performance Requirements of SAE 100R8 w/ a Significantly Tighter Bend Radius. Multiline Available.
- Temperature Range: -65 Deg F - +200 Deg F (-54 Deg C - +93 Deg C) (Petroleum & Synthetic Oils), to +158 Deg F (+70 Deg C) (Water/Oil & Water Glycol).
Specifications
| Color | Black |
| Coupling Recommendation | MegaCrimp |
| Cover Material | Urethane - Perforated for Use in General Hydraulic & Pneumatic Service |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Dash Size | 6 |
| Industrial Description | 6TH8X50FT |
| Inside Diameter 1 (in) | 3/8 in (0.97 cm) |
| Length | 165 ft (50.29 m) |
| Maximum Pressure | 4000 psi (275.79 bar) |
| Minimum Burst Pressure (PSI) | 16000 psi (1103.14 bar) |
| Outside Diameter | 3/4 in (1.91 cm) |

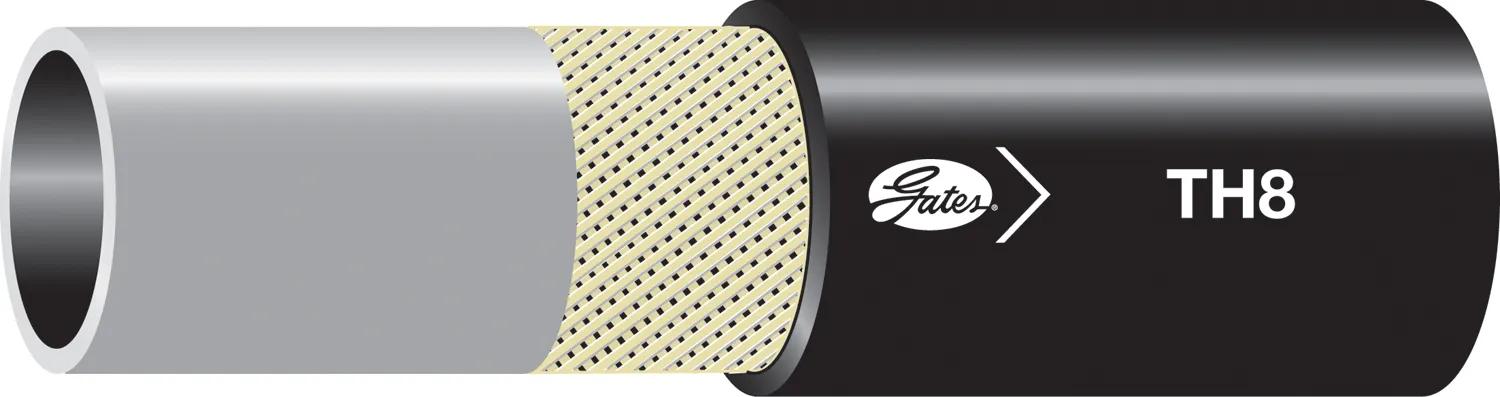

| Product Type | TH8 Hydraulic Hose - SAE 100R8 |
| Radius | 2-1/2 in (6.35 cm) |
| Reinforcement | Polyester |
| Standard | SAE 100R8 |
| Temperature Range | -65°F @ 200°F Petroleum & Synthetic Oils, @ 158°F Water/Oil & Water Glycol |
| Tube Description | Seamless Nylon (Type Z) |
| Type | Very High Pressure |
Interchanges & Equivalent parts:
| H33606 |
| 40106 |
| 85417 |
| 6TH8X50FT |
| FC37406 |
| 04030536 |
| 44671182 |
