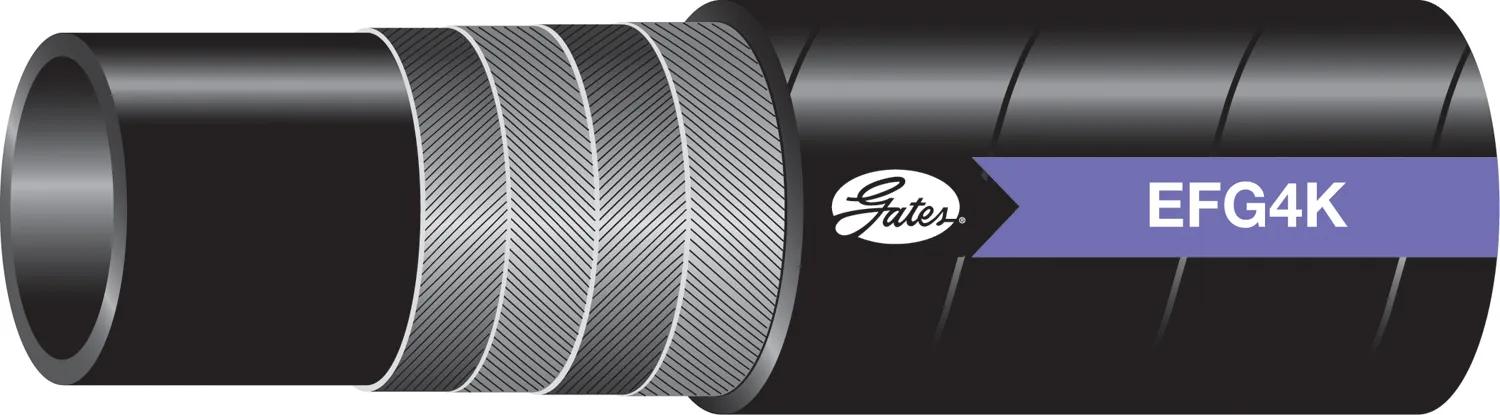

Hydraulic Hose, ID: 3/8 in
#GAT85491
Product Overview
Recommended for Extremely High-Pressure, High-Impulse Applications. Exceeds All Performance Requirements for SAE 100R12, EN 856 R12 & ISO 3862 Type R12.
Features & Benefits
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). Recommended Couplings: GlobalSpiral, Special One-Piece (MC4-20 Crimper Only) (Size 20) & Stainless Steel S.
Specifications
| Couleur | Black |
| Recommandation d'accouplement | GlobalSpiral, Stainless Steel S |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Dash Size | 6 |
| Industrial Description | 6EFG4KX50FT |
| Inside Diameter 1 (in) | 3/8 po (0,97 cm) |
| Length | 25 ft (7,62 m) |
| Maximum Pressure | 4000 psi (275.79 bar) |
| Minimum Burst Pressure (PSI) | 16000 psi (1103.14 bar) |
| Outside Diameter | 51/64 in (2.03 cm) |
| Product Type | EFG4K Spiral Wire Hose - SAE 100R12 |
| Radius | 2-1/2 in (6.35 cm) |
| Reinforcement | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Standard | SAE 100R12 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Très haute pression |
Interchanges & Equivalent parts:
| 85491 |
| GR1206X50 |
| 010406X |
| 10406 |
| 6EFG4KX50FT |
| H35006 |
| H43006 |
| 04029730 |
| 46511430 |
