Hydraulic Hose, ID: 3/8 in
#GAT85651
Product Overview
Recommended for Hydraulic Jack Applications. Meets Material Handling Institute Specification IJ 100 for Hydraulic Hose & Assemblies Used w/ Jacking Systems. 10,000 Static Pressure Only. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -40 Deg F - +120 Deg F (-40 Deg C - +49 Deg C). Recommended Couplings: GlobalSpiral (Size 6) & MegaCrimp Male Pipe Long Nose Couplings on Jack End of Assembly for Engagement.
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp Male Pipe Long Nose Couplings on Jack End of Assembly for Engagement |
| Cover Material | Synthetic Rubber - Nitrile/PVC - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 6 |
| Industrial Description | 6J2ATX50FT |
| Inside Diameter 1 (in) | 3/8 in (0.97 cm) |
| Length | 50 pi (15.24 m) |
| Maximum Pressure | 10000 psi (689.46 bar) |
| Minimum Burst Pressure (PSI) | 20000 psi (1378.93 bar) |
| Outside Diameter | 47/64 in (1.85 cm) |

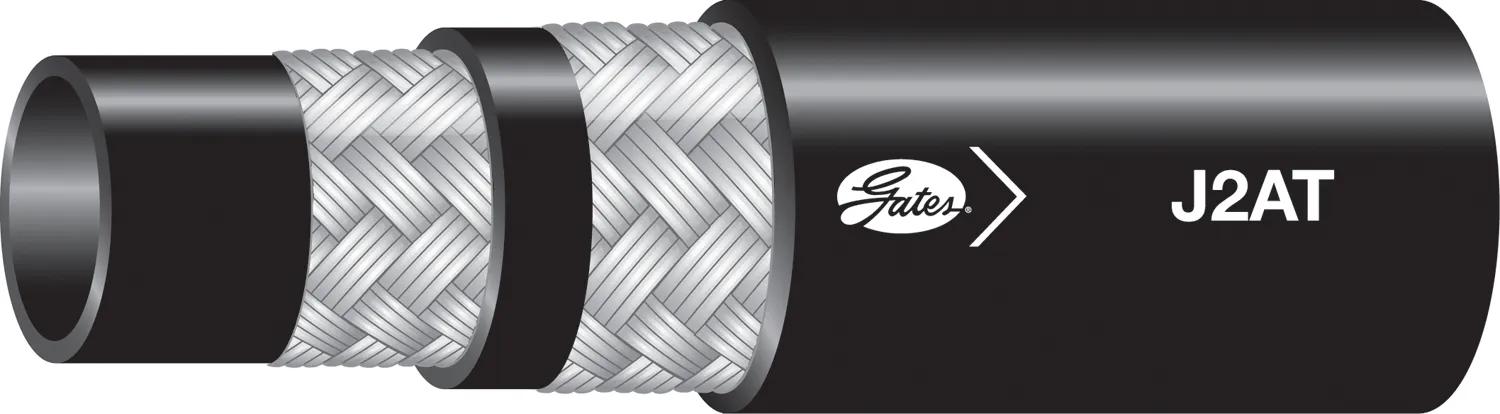

| Product Type | J2AT 2-Wire Braid Jack Hose - 10000 psi Static Pressure Only |
| Radius | 2-1/2 in (6.35 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Temperature Range | -40°F @ 120°F (-40°C @ 49°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| 85651 |
| 6J2ATX50FT |
| 04030077 |
| 46574881 |
