Hydraulic Hose, ID: 5/16 in
#GAT85682
Product Overview
Recommended for PetroleumûBase or Phosphate Ester Fluids; Diesel Fuels & Filtration Lines, Transmission Coolant Lines & Hot Lube Oil Lines.
Features & Benefits
- Recommended Couplings: C5 Field Attachable, C5X Field Attachable (Sizes 5, 8, & 12).
- C5D (Sizes 4 - 12) Meets or Exceeds DOTFMVSS 106û74 Type All, SAE J1402 Type All & SAE J1405 & Fuel Resistance of SAE J30R2. Not Approved for Biodiesel.
- Also Recommended for Power Steering (Caution: Intended for HeavyûDuty Commercial Vehicle Use Only), Gasoline & Turbocharger Oil Supplies. Tilt Cab Cylinder & Air Brakes.
- Federal Law Requires Registration w/ the Department of Transportation for Anyone Producing Air Brake Hose Assemblies w/ Swaged or Crimped Fittings.
- Temperature Range: -40 Deg F - +300 Deg F (-40 Deg C - +149 Deg C). For Air: to +250 Deg F (+121 Deg C) Only. Maximum Phosphate Esters: to +212 Deg F (+100 Deg C).
Specifications
| Couleur | Green |
| Recommandation d'accouplement | C5 Field Attachable |
| Matériau du couvercle | Green Polyester/Rubber Blend |
| Type de housse | Oil & Mildew Resistant |
| Dash Size | 6 |
| DOT approuvé | Yes |
| Matériau du tube intérieur du tuyau | CPE (Chlorinated Polyethylene) |
| Description industrielle | 6C5DX50FT |
| Diam. intérieur 1 (po) | 5/16 po (0,79 cm) |
| Longueur | 220 pi (67,06 m) |
| Pression maximale | 1500 psi (103.42 bar) |
| Minimum Burst Pressure (PSI) | 6000 psi (413.68 bar) |
| Outside Diameter | 43/64 in (1.7 cm) |
| Pressure | 1500 psi (103.42 bar) |

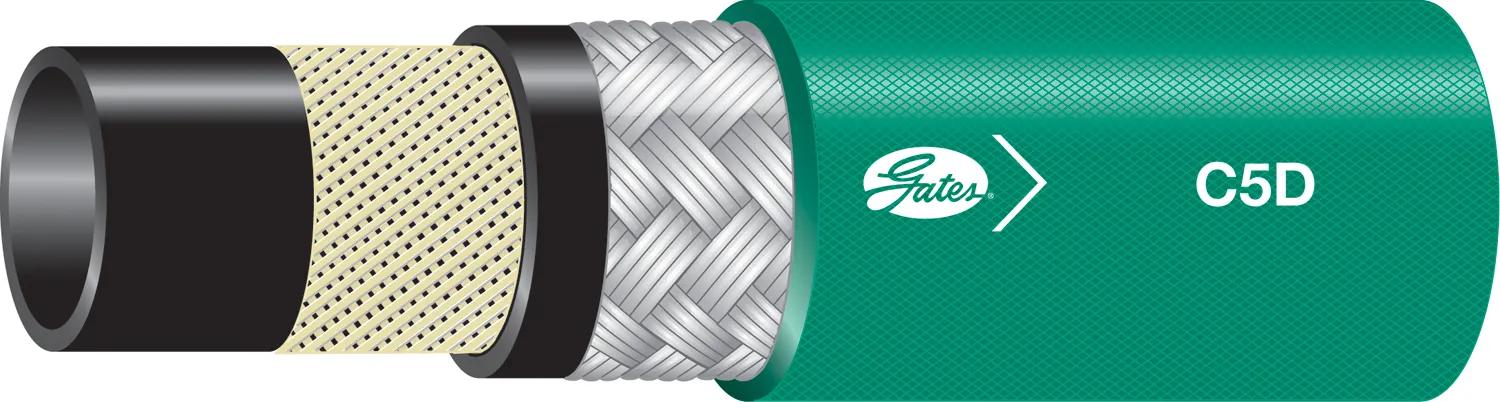

| Product Type | C5D High-Temp Multi-Fluid Hose |
| Radius | 1-51/64 in (4.57 cm) |
| Reinforcement | One Braid of High-Tensile Steel Wire Over One Braid of Polyester |
| Series of Hose Ends Used | Permanent Crimp And "Field Attachable C5" Series Fittings |
| Standard | SAE J1402 |
| Tube Description | Black, Oil & Heat Reistant, Synthetic Rubber |
| Type | Moyenne pression |
Interchanges & Equivalent parts:
| GUT06X50 |
| H16606 |
| 85682 |
| H16906 |
| H56906 |
| 6C5DX50FT |
| FC35006 |
| 9X2373 |
| Y106 |
| FC35506 |
| 04030408 |
| 36580002 |
