Hydraulic Hose, ID: 7/8 in
#GAT86616
Product Overview
Recommended for Medium Pressure Hydraulic PetroleumûBased Oil Lines in Impulse Applications, Lube Oil, Air & Water in Applications Such as Air Brakes.
Features & Benefits
- DOT FMVSS 106û74 Type AII and SAE J1402 Type AII for Air Brake Applications (Sizes 4 - 12).
- Also For Power Steering (Caution: Intended for Heavy Duty Commercial Vehicle Use Only), Turbocharger Oil Supplies, Tilt Cab Cylinders, Transmission Coolant & Filtration Lines.
- Federal Law Requires Registration w/ the Department of Transportation for Anyone Producing Air Brake Hose Assemblies w/ Swaged or Crimped Fittings.
- Temperature Range: Under SAE 100R5 (Hydraulic) Conditions: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). AllûPurpose Fleet Application (Hot Lube Oil Lines): -40 Deg F - +300░F (-40 Deg C - +149 Deg C).
- For Air: to +160 Deg F (+71 Deg C) only. Avoid Continuous Use at Maximum Temperature Concurrent w/ Maximum Working Pressures.
- Recommended Couplings: C5 Field Attachable, C5X Field Attachable (Sizes 5, 8 & 12), MegaCrimp & GlobalSpiral. Please See Gates Ecrimp for Correct Fitting Recommendation.
- Meets or Exceeds Requirements of SAE 100R5 for Traditional Hydraulic Applications. Not Recommended for Gasoline or Diesel Fuel.
Specifications
| Couleur | Black |
| Recommandation d'accouplement | C5 Field Attachable |
| Matériau du couvercle | Black Polyester Braid |
| Type de housse | Oil & Mildew Resistant |
| Dash Size | 16 |
| DOT Approved | No |
| Hose Inner Tube Material | Nitrile |
| Industrial Description | 16C5CX50FT |
| Inside Diameter 1 (in) | 7/8 po (2,24 cm) |
| Length | 200 ft (60,96 m) |
| Maximum Pressure | 800 psi (55.16 bar) |
| Minimum Burst Pressure (PSI) | 3200 psi (220.63 bar) |
| Outside Diameter | 1-15/64 in (3.12 cm) |
| Pressure | 800 psi (55.16 bar) |
| Product Type | C5C Hydraulic Hose - SAE 100R5 |
| Radius | 7-13/32 in (18.82 cm) |

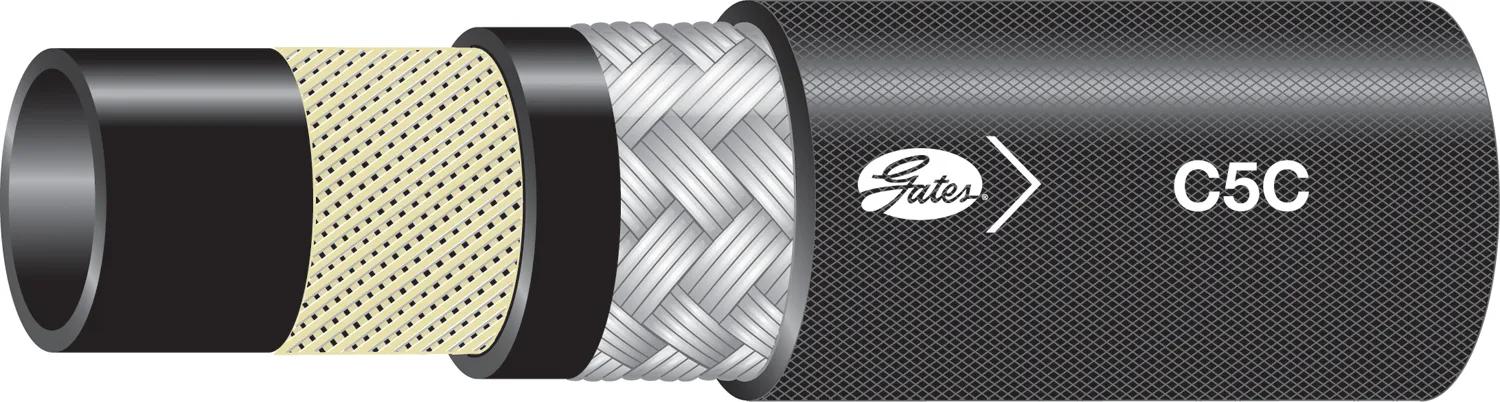

| Reinforcement | One Braid of High-Tensile Carbon Steel Wire Over One Braid of Polyester |
| Series of Hose Ends Used | Permanent Crimp And "Field Attachable C5" Series Fittings |
| Standard | SAE 100R5 |
| Tube Description | Black, Oil & Heat Resistant Synthetic Rubber |
| Type | Moyenne pression |
Interchanges & Equivalent parts:
| GR5-16X50 |
| GR516X50 |
| GYHGR5-16X50 |
| GR516X50BX |
| H06916 |
| 010816 |
| 16C5CX50FT |
| 10816 |
| 86616 |
| DR51650 |
| 9X2368 |
| SR516 |
| H16916 |
| 20116 |
| Y916 |
| 150316 |
| 265116 |
| 20126116 |
| 22516 |
| 04030384 |
| 36581768 |
