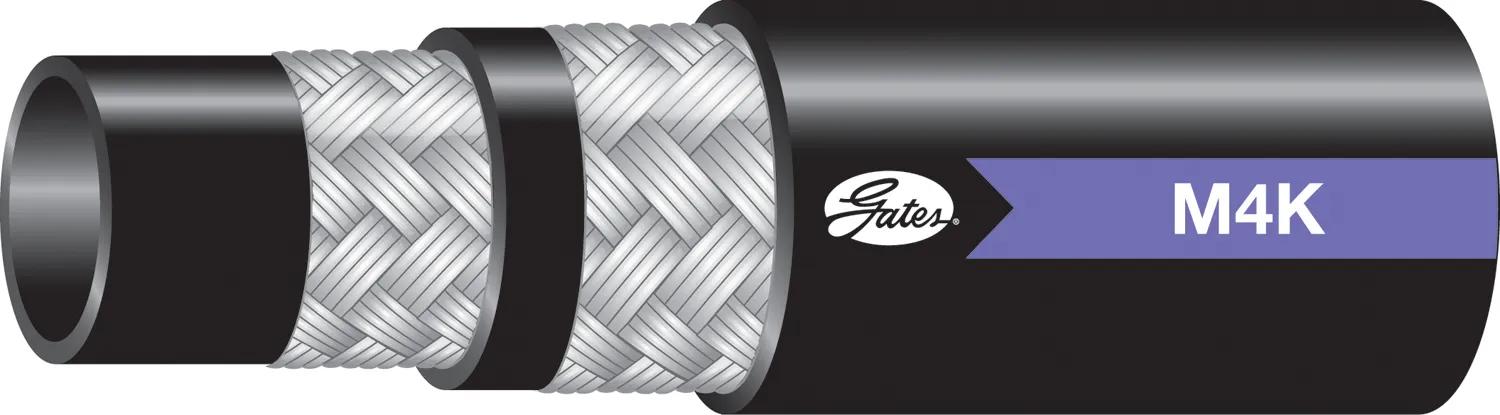

Hydraulic Hose, Le: 100 ft, ID: 1/2 in, GlobalSpiral
#GAT70822
Product Overview
Recommended for High-Pressure Hydraulic Applications. Exceeds SAE 100R19 & ISO11237 R19. Allows for Tighter Minimum Bend Radius, Increased Working Pressure & Improved Impulse Cycles than Industry Standards.
Features & Benefits
- Provides Greater Performance, Flexibility, Easier Routing & Plumbing of Mobile & Stationary Hydraulic Platforms. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). Recommended Couplings: GlobalSpiral, MegaCrimp, Stainless Steel B (Sizes 4 – 8) & Stainless Steel S (Sizes 12 – 16).
Specifications
| Couleur | Black |
| Recommandation d'accouplement | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Matériau du couvercle | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Type de housse | Type C2 - Flame, Oil, Abrasion & Weather Resistant |
| Dash Size | 8 |
| Description industrielle | 8M4KXREEL |
| Diam. intérieur 1 (po) | 1/2 po (1,27 cm) |
| Longueur | 100 ft (30,48 m) |
| Pression maximale | 4000 psi (275.79 bar) |
| Pression minimale d'éclatement (PSI) | 16000 psi (1103.14 bar) |
| Diamètre extérieur | 13/16 in (2.06 cm) |
| Type de produit | Global M4K Mega4000 Hose - SAE 100R19 |
| Rayon | 2-51/64 in (7.11 cm) |
| Renforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R19 |
| Plage de température | -40°F @ 212°F (-40°C @ 100°C) |
| Tuyau - Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Haute pression |
Interchanges & Equivalent parts:
| H35008250R |
| 351TC8 |
| 351TC8RL |
| 70822 |
| 8M4KXREEL |
| H40008 |
| 4878 |
| 04029818 |
| 46571459 |
