Hydraulic Hose, Le: 100 ft, ID: 1 in
#GAT85469
Product Overview
Recommended for Extremely High Pressure, High Impulse Applications Such as Hydrostatic Transmissions. Recommended for Extremely High Pressure, High Impulse Applications Such as Hydrostatic Transmissions.
Features & Benefits
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- EFG6K is Designed to Meet or Exceed All Requirements of SAE 100R15 Specifications & Performance Requirements of EN 856 4SP (Sizes 6, 8, 10 & 12), EN 856 4SH (Sizes 12, 16 & 20), and ISO 3862 Type R15 (Sizes 6, 8, 10, 12, 16 & 24).
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). Recommended Couplings: GlobalSpiral, GlobalSpiral MAX Pressure & Stainless Steel S (Sizes 6 - 20).
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, Stainless Steel S |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Dash Size | 16 |
| Industrial Description | 16EFG6KX25FT |
| Inside Diameter 1 (in) | 1 in (2.54 cm) |
| Length | 100 ft (30.48 m) |
| Maximum Pressure | 6000 psi (413.68 bar) |
| Minimum Burst Pressure (PSI) | 24000 psi (1654.72 bar) |
| Outside Diameter | 1-17/32 in (3.89 cm) |

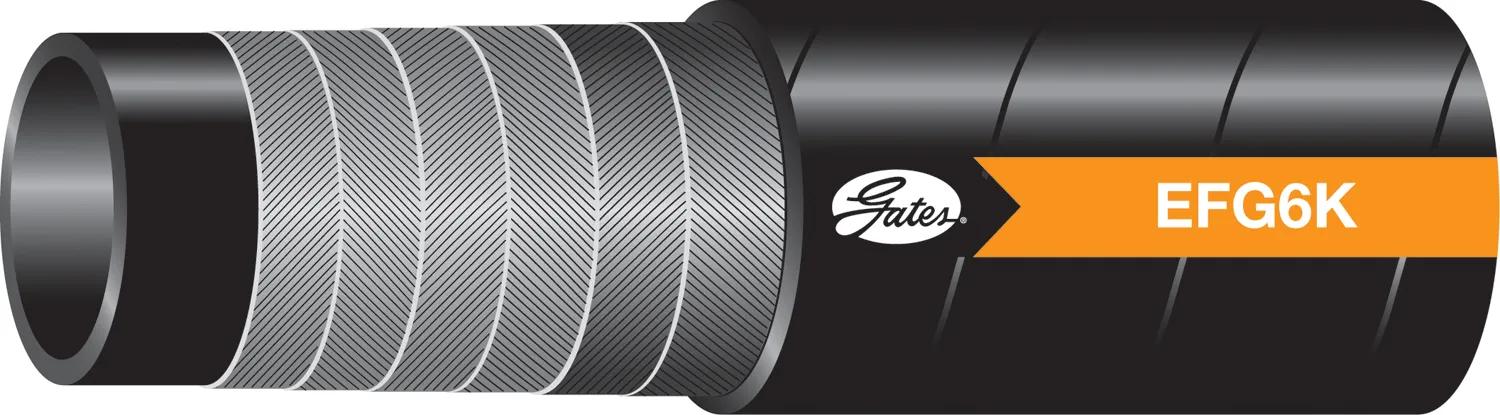

| Product Type | EFG6K Spiral Wire Hose - SAE 100R15 |
| Radius | 6 in (15.24 cm) |
| Reinforcement | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Standard | SAE 100R15 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Extremely High Pressure Hose |
Interchanges & Equivalent parts:
| H46416 |
| H48516 |
| 11616 |
| 85469 |
| 16EFG6KX25FT |
| FC60616 |
| 04029649 |
| NT30016 |
| NZ16 |
| 46514036 |
