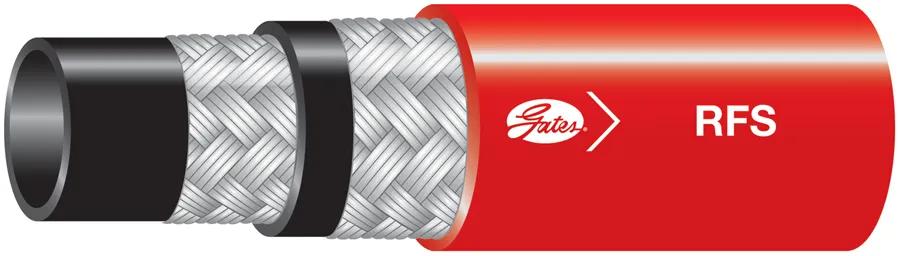

Hydraulic Hose, Le: 100 pi, ID: 1/2 in, MegaCrimp
#GATH24100-08F
Sommaire du produit
Recommended for Low-Pressure Powder Fire Suppressant Applications in Mining, Forestry & Fire Fighting Equipment. The Red Cover is for Easy Visual Identification in these Applications. Meets Performance Requirements of SAE 100R1.
Caractéristiques et avantages
- Meets Flame Resistance Acceptance Designation MSHA 2G & Fire Retardant Anti Static Designation FRAS. Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). Recommended Couplings: MegaCrimp & Power Crimp (Size 3 Only).
Spécifications
| Color | Red |
| Coupling Recommendation | MegaCrimp |
| Cover Material | Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 8 |
| Industrial Description | 8RFSXREEL |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 100 ft (30.48 m) |
| Maximum Pressure | 2000 psi (137.89 bar) |
| Minimum Burst Pressure (PSI) | 8000 psi (551.57 bar) |
| Outside Diameter | 51/64 in (2.03 cm) |
| Product Type | RFS Red Fire Suppressant Hose |
| Radius | 7 in (17.78 cm) |
| Reinforcement | One Braid; High-Tensile Steel Wire |
| Standard | SAE 100R1 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Low Pressure |
Interchanges et pièces équivalentes:
| H24100-08 |
| H2410008 |
| GATH2410008 |
| GATH24100-08 |
| H24100-08F |
| 46573315 |
