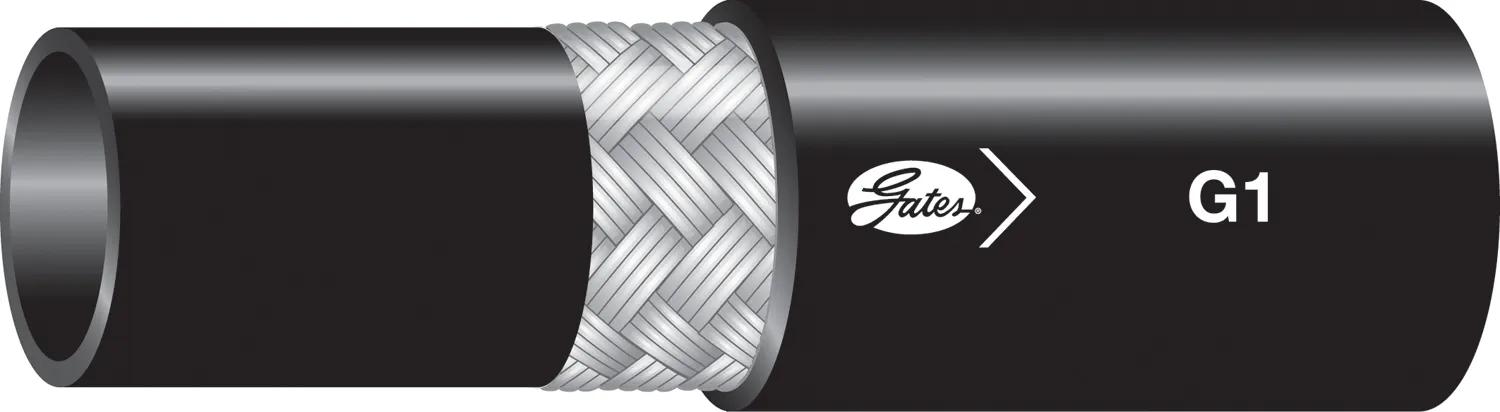

Hydraulic Hose, Le: 100 pi, ID: 1/2 in
#GAT70602
Product Overview
Recommended for Medium Pressure Hydraulic Lines. Meets or Exceeds the Requirements of SAE 100R1 Type S & ISO 1436 1SN R1, as Well as the Performance Requirements of EN 853 1SN. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C).
- Recommended Couplings: Field Attachable Type T, GlobalSpiral, GlobalSpiral Plus, MegaCrimp, MPGB (Size 3), Power Crimp (Size 3), Power Crimp Grease (Size 3) & Stainless Steel B (Sizes 4 - 12, 20 & 32).
Specifications
| Color | Black |
| Coupling Recommendation | Field Attachable T, GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Nitrile/PVC - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 8 |
| Industrial Description | 8G1XREEL |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 100 ft (30.48 m) |
| Maximum Pressure | 2325 psi (160.3 bar) |
| Minimum Burst Pressure (PSI) | 9300 psi (641.2 bar) |
| Outside Diameter | 51/64 in (2.03 cm) |
| Product Type | Global G1 1-Wire Braid Hose - SAE 100R1 Type AT |
| Radius | 7 in (17.78 cm) |
| Reinforcement | One Braid; High-Tensile Steel Wire |
| Standard | SAE 100R1 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Medium Pressure |
Interchanges & Equivalent parts:
| GYHGR1SN-08X250 |
| GR1SN08X250 |
| GR1SN-08X250 |
| GR1SN08X250RL |
| H10408250R |
| H10408500R |
| H19008250R |
| H19008500R |
| 012758 |
| 12758 |
| 26818 |
| FC21108 |
| FC21108RL |
| GH6638R250 |
| GH6638R500 |
| 4218 |
| AX08 |
| 70602 |
| 8G1XREEL |
| 2681-8 |
| FC211-08 |
| FC211-08RL |
| GH663-8R250 |
| GH663-8R500 |
| 4228 |
| 04030085 |
| EC11508 |
| 46570122 |
