Hydraulic Hose, Le: 100 pi, ID: 1 in
#GAT70293
Product Overview
Recommended for Low Temperature High-Pressure Hydraulic Oil Lines. Meets or Exceeds the Requirements of SAE 100R2, ISO1436 2SN R2 & EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -70 Deg F - +212 Deg F (-57 Deg C - +100 Deg C). Recommended Couplings: Field Attachable Type T (Sizes 4 – 24), GlobalSpiral, GlobalSpiral Plus & MegaCrimp.
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSprial, MegaCrimp |
| Cover Material | Thin Synthetic Rubber - Chloroprene - Type A |
| Cover Type | Type A - Flame, Oil & Abrasion Resistant |
| Dash Size | 16 |
| Industrial Description | 16G2LXREEL |
| Inside Diameter 1 (in) | 1 in (2.54 cm) |
| Length | 100 ft (30.48 m) |
| Maximum Pressure | 2400 psi (165.47 bar) |
| Minimum Burst Pressure (PSI) | 9600 psi (661.89 bar) |
| Outside Diameter | 1-31/64 in (3.76 cm) |

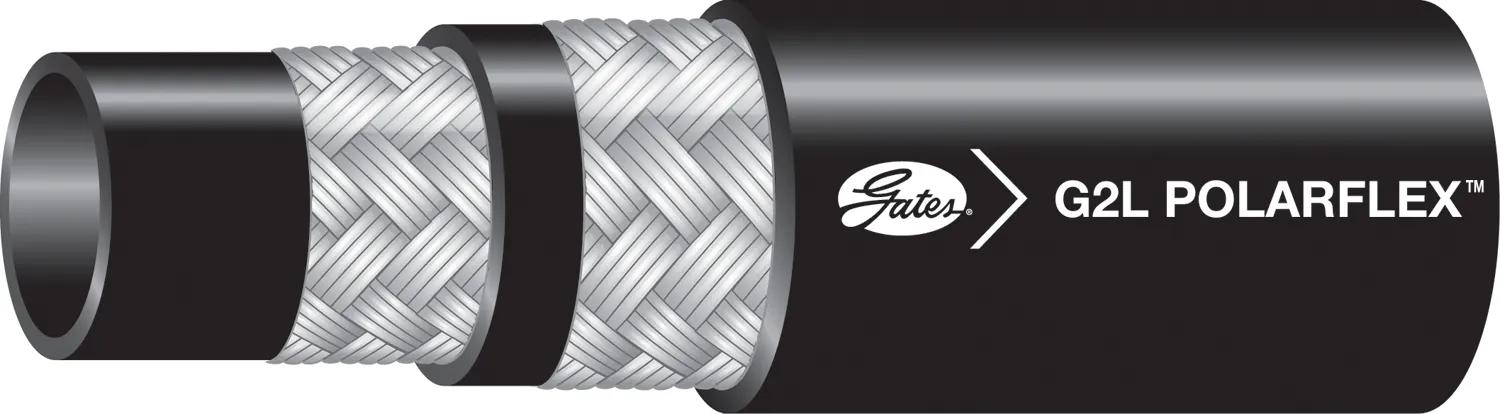

| Product Type | Global G2L PolarFlex Hose - SAE 100R2 Type S |
| Radius | 12 in (30.48 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R2 |
| Temperature Range | -70°F @ 212°F (-57°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| LR2SN16X250 |
| LR2SN-16X250 |
| GYHLR2SN-16X250 |
| LR2SN16X250RL |
| GH12016 |
| GH12016R150 |
| 301LT16RL |
| 70293 |
| 16G2LXREEL |
| 4657-2207 |
| GH120-16 |
| GH120-16R150 |
| H32516250R |
| H42516250R |
| 278116RL |
| 472LT16 |
| 04030062 |
| 46572207 |
