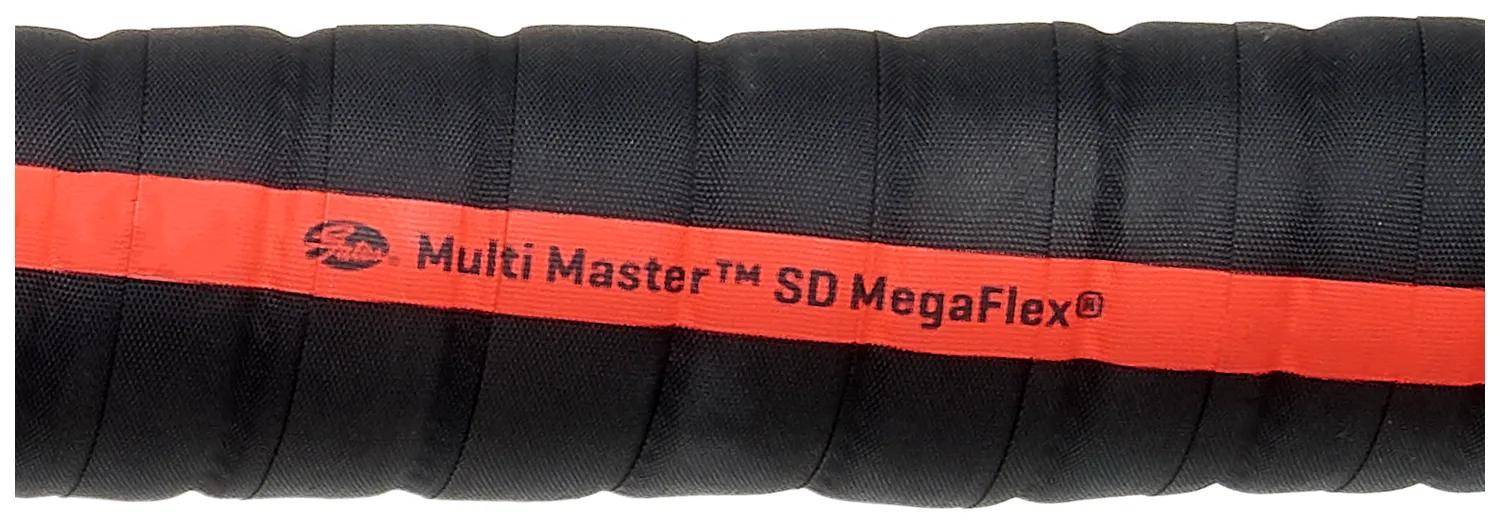

Hydraulic Hose, Le: 100 pi, ID: 2 in, GlobalSpiral
#GAT70302
Specifications
| Color | Black |
| Coupling Recommendation | GL, Clamp over Beaded Nipple |
| Cover Material | Chloroprene - Type A |
| Cover Type | Type A - Corrugated - Flame Resistant |
| Dash Size | 32 |
| End 1 Diameter | 2-25/64 in |
| Industrial Description | MULTI MASTER 32GMV MEGAFLEX 2 IN XCTN |
| Inside Diameter 1 (in) | 2 in |
| Length | 100 ft |
| Maximum Pressure | 150 psi (10.34 bar) |
| Minimum Burst Pressure (PSI) | 600 psi (41.37 bar) |
| Outside Diameter | 2-25/64 in |
| Product Type | Multi Master GMV Megaflex Return Line & Suction Hose - SAE 100R4 |
| Radius | 2 in |
| Reinforcement | Synthetic; High Tensile Textile Reinforcement w/ Steel Wire Helix |
| Standard | SAE 100R4 |
| Temperature Range | -40°F @ 275°F; Do Not Convey Fuels Over 120°F. |
| Tube Description | Black |
| Type | Low Pressure |
Interchanges & Equivalent parts:
| 70302 |
| MULTIMASTER32GMVMEGAFLEX2XCTN |
| 46882290 |
