Hydraulic Hose, Le: 150 pi, ID: 3/8 in, MegaCrimp
#GAT71079
Product Overview
Recommended for Use w/ Petroleum, Water-Base & Synthetic Hydraulic Fluids. Applications Include: Power & Telephone Mobile Equipment (Cherry Pickers), Lubrication Lines, Blowout Preventer Control Lines, Hydraulic Lifts & Farm & Construction Machinery.
Features & Benefits
- Recommended Couplings: MegaCrimp & Swage PCTS (Size 3 Only).
- TH8 Hose Meets or Exceeds Performance Requirements of SAE 100R8 w/ a Significantly Tighter Bend Radius. Multiline Available.
- Temperature Range: -65 Deg F - +200 Deg F (-54 Deg C - +93 Deg C) (Petroleum & Synthetic Oils), to +158 Deg F (+70 Deg C) (Water/Oil & Water Glycol).
Specifications
| Color | Black |
| Coupling Recommendation | MegaCrimp |
| Cover Material | Urethane - Perforated for Use in General Hydraulic & Pneumatic Service |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Dash Size | 6 |
| Industrial Description | 6TH8XCTN |
| Inside Diameter 1 (in) | 3/8 in |
| Length | 150 ft |
| Maximum Pressure | 4000 psi |
| Minimum Burst Pressure (PSI) | 16000 psi |
| Outside Diameter | 3/4 in |

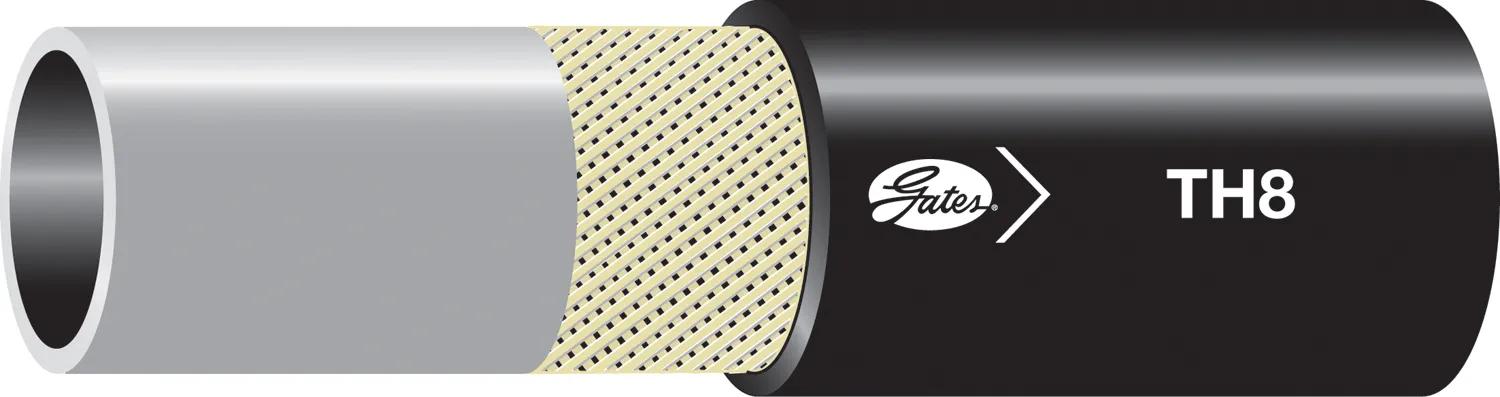

| Product Type | TH8 Hydraulic Hose - SAE 100R8 |
| Radius | 2-1/2 in |
| Reinforcement | Polyester |
| Standard | SAE 100R8 |
| Temperature Range | -65 °F to 200 °F Petroleum & Synthetic Oils, to 158 °F Water/Oil & Water Glycol |
| Tube Description | Seamless Nylon (Type Z) |
| Type | Very High Pressure |
Interchanges & Equivalent parts:
| H33606250R |
| 5906 |
| 71079 |
| 6TH8XCTN |
| 2406491 |
| 3R8006003 |
| 3TR806250BX |
| FC37406RL |
| 44671181 |
