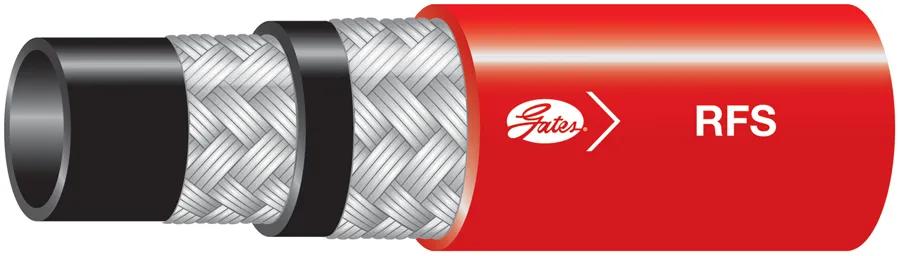

Hydraulic Hose, Le: 165 pi, ID: 1/4 in, MegaCrimp
#GATH24100-04F
Product Overview
Recommended for Low-Pressure Powder Fire Suppressant Applications in Mining, Forestry & Fire Fighting Equipment. The Red Cover is for Easy Visual Identification in these Applications. Meets Performance Requirements of SAE 100R1.
Features & Benefits
- Meets Flame Resistance Acceptance Designation MSHA 2G & Fire Retardant Anti Static Designation FRAS. Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). Recommended Couplings: MegaCrimp & Power Crimp (Size 3 Only).
Specifications
| Color | Red |
| Coupling Recommendation | MegaCrimp |
| Cover Material | Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 4 |
| Industrial Description | 4RFSXREEL |
| Inside Diameter 1 (in) | 1/4 in (0.64 cm) |
| Length | 165 ft (50.29 m) |
| Maximum Pressure | 2750 psi (189.6 bar) |
| Minimum Burst Pressure (PSI) | 11000 psi (758.41 bar) |
| Outside Diameter | 17/32 in (1.35 cm) |
| Product Type | RFS Red Fire Suppressant Hose |
| Radius | 4 in (10.16 cm) |
| Reinforcement | One Braid; High-Tensile Steel Wire |
| Standard | SAE 100R1 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Low Pressure |
Interchanges & Equivalent parts:
| H24100-04 |
| H2410004 |
| GATH2410004 |
| GATH24100-04 |
| H24100-04F |
| 46573314 |
