Hydraulic Hose, Le: 190 pi, ID: 1/2 in
#GAT70290
Product Overview
Recommended for Low Temperature High-Pressure Hydraulic Oil Lines. Meets or Exceeds the Requirements of SAE 100R2, ISO1436 2SN R2 & EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -70 Deg F - +212 Deg F (-57 Deg C - +100 Deg C). Recommended Couplings: Field Attachable Type T (Sizes 4 – 24), GlobalSpiral, GlobalSpiral Plus & MegaCrimp.
Specifications
| Couleur | Black |
| Recommandation d'accouplement | GlobalSprial, MegaCrimp |
| Matériau du couvercle | Thin Synthetic Rubber - Chloroprene - Type A |
| Type de housse | Type A - Flame, Oil & Abrasion Resistant |
| Dash Size | 8 |
| Description industrielle | 8G2LXREEL |
| Diam. intérieur 1 (po) | 1/2 po (1,27 cm) |
| Longueur | 190 ft (57,91 m) |
| Pression maximale | 4000 psi (275.79 bar) |
| Pression minimale d'éclatement (PSI) | 16000 psi (1103.14 bar) |
| Outside Diameter | 55/64 in (2.18 cm) |

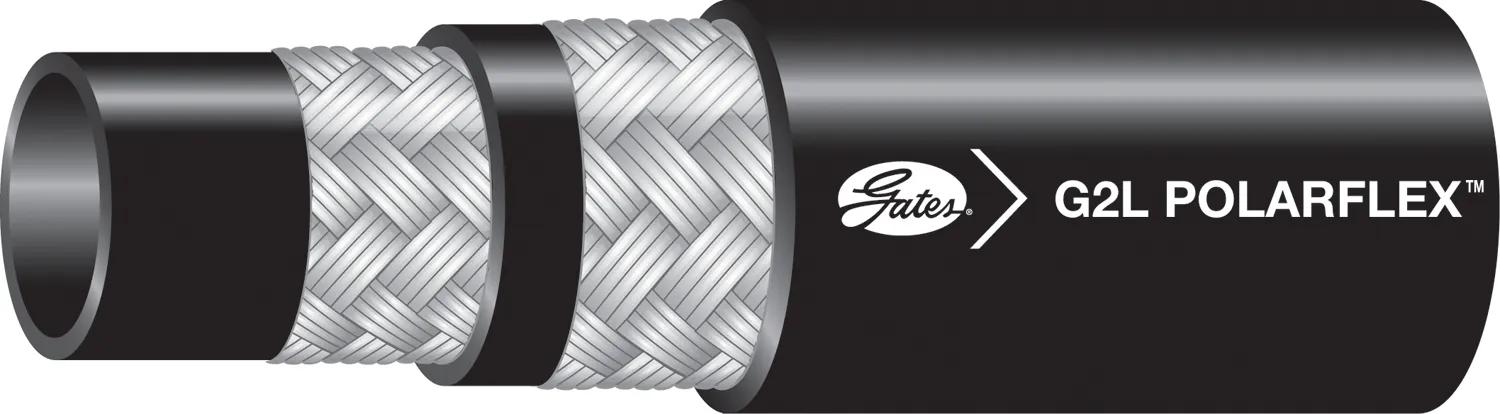

| Product Type | Global G2L PolarFlex Hose - SAE 100R2 Type S |
| Radius | 7 in (17.78 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R2 |
| Temperature Range | -70°F @ 212°F (-57°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Haute pression |
Interchanges & Equivalent parts:
| LR2SN08X250 |
| LR2SN08X250RL |
| GH1208 |
| GH1208R500 |
| 301LT8RL |
| 70290 |
| GH120-8 |
| GH120-8R500 |
| H32508250R |
| 8G2LXREEL |
| H42508250R |
| H42508500R |
| 27818RL |
| 472LT8 |
| 04030059 |
| 46572204 |
