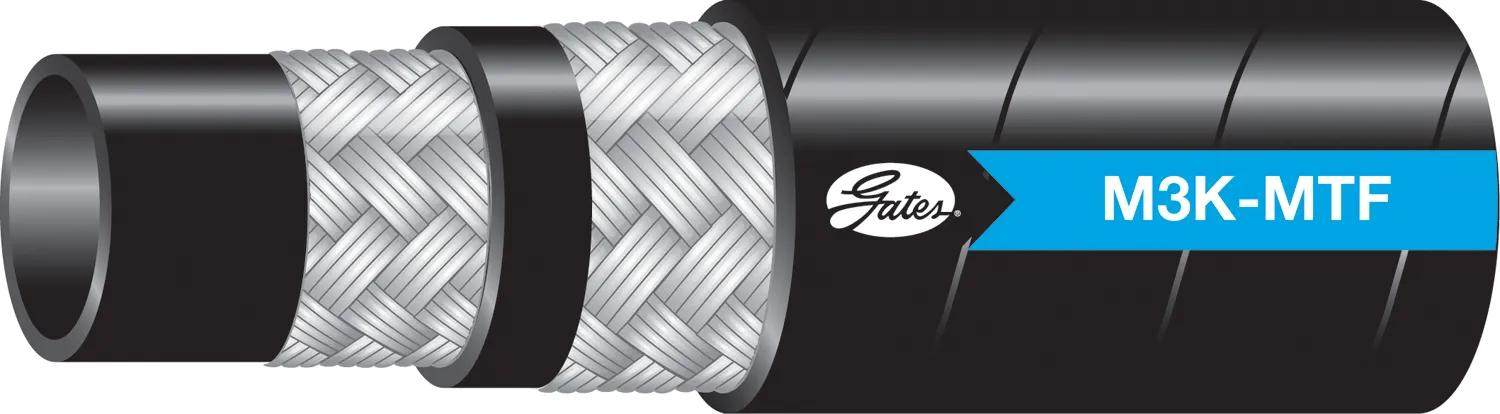

Hydraulic Hose, Le: 200 pi, ID: 1/2 in, GlobalSpiral
#GAT70567
Product Overview
Recommended for High-Pressure Hydraulic Oil Lines. Exceeds SAE 100R17 & ISO11237 R17 Working Pressure, Minimum Bend Radius Requirements & Performance Requirements of EN 857 1SC.
Features & Benefits
- M3K Hose Has Smaller Exterior Dimensions & Significantly Tighter Bend Radius than Other SAE 100R1 & 100R2 Hose. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). MegaTuff Hose Lasts up to 300 Times Longer than Standard Hose During Hose-to-Hose & Hose-to-Metal Abrasion Tests Per ISO 6945.
- Recommended Couplings: GlobalSpiral, MegaCrimp & Stainless Steel B.
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Dash Size | 8 |
| Industrial Description | 8M3K-MTFXREEL |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 200 ft (60.96 m) |
| Maximum Pressure | 3250 psi (224.08 bar) |
| Minimum Burst Pressure (PSI) | 13000 psi (896.3 bar) |
| Outside Diameter | 51/64 in (2.03 cm) |
| Product Type | Global M3K Mega3000 Hose - SAE 100R17 - MegaTuff Cover |
| Radius | 2-51/64 in (7.11 cm) |
| Reinforcement | One Braid; High-Tensile Steel Wire |
| Standard | SAE 100R17 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| AR1708X250 |
| AR1708X250RL |
| H54508250R |
| H54508500R |
| 451ST8 |
| 451ST8RL |
| 70567 |
| 8M3KMTFXREEL |
| H54508 |
| 387ST8 |
| 04029911 |
| 46571183 |
