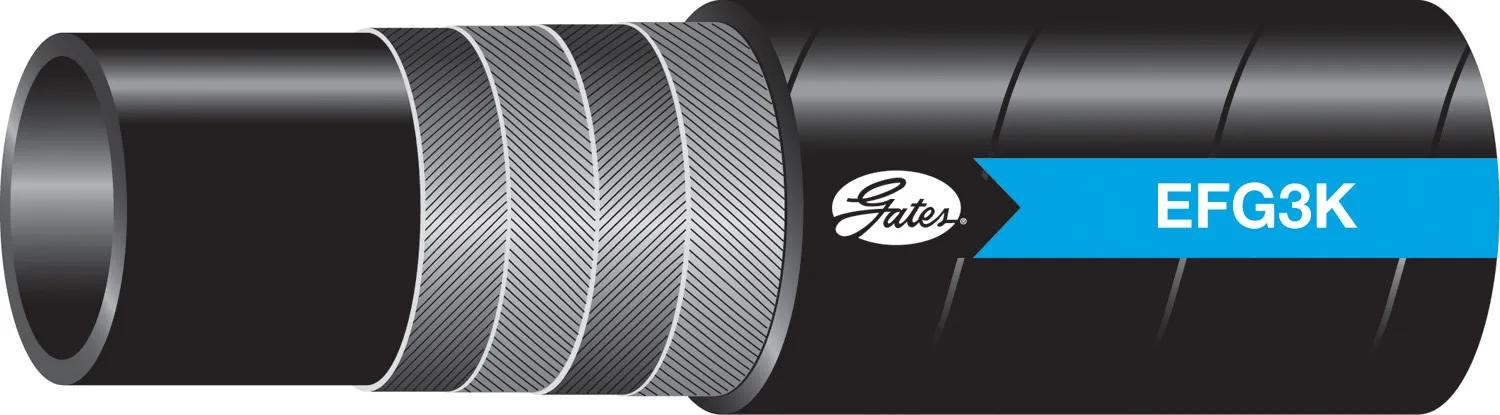

Hydraulic Hose, Le: 220 pi, ID: 1-1/2 in, GlobalSpiral
#GAT85434
Product Overview
Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Recommended Couplings: GlobalSpiral Couplings, GlobalSpiral Plus, Special One-Piece (MC4-20 Crimper Only) (Size 20), Stainless Steel B (Size 20) & Stainless Steel S (Sizes 24 & 32).
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C).
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral Couplings, GlobalSpiral Plus, Special One-Piece (MC4-20 Crimper Only) (Size 20), Stainless Steel B (Size 20) & Stainless Steel S (Sizes 24 & 32) |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Dash Size | 32 |
| Industrial Description | 32EFG3KX25FT |
| Inside Diameter 1 (in) | 1-1/2 in |
| Length | 220 ft |
| Maximum Pressure | 3000 psi |
| Minimum Burst Pressure (PSI) | 12000 psi |
| Outside Diameter | 2-5/8 in |
| Product Type | EFG3K Spiral Wire Hose - SAE 100R12 |
| Radius | 12-1/2 in |
| Reinforcement | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Standard | SAE 100R12 |
| Temperature Range | -40 °F to 250 °F |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Very High Pressure |
| UPC | 072053320503 |
Interchanges & Equivalent parts:
| H46432 |
| 72132BX |
| 85434 |
| 32EFG3KX25FT |
| 04029779 |
| 46511744 |
