Hydraulic Hose, Le: 220 pi, ID: 1-1/8 in, MegaCrimp
#GAT86998
Product Overview
Recommended for Petroleum Based or Phosphate Ester Fluids, Turbocharger Oil Supply & Hot Lube Oil Lines. Meets the Requirements of SAE J1405 Performance Specifications for High Temperature Transmission & Lubrication Oil Systems.
Features & Benefits
- DOT FMVSS 106–74 Type AII & SAE J1402 Type AII for (Sizes 4 -12).
- Temperature Range: -40 Deg F - +302 Deg F (-40 Deg C - +150 Deg C).
- Recommended Couplings: C5 Field Attachable (Sizes 6, 16 & 20), C5X Field Attachable (Sizes 5, 8 & 12), MegaCrimp & GlobalSpiral. Please See Gates Ecrimp for Correct Fitting Recommendation.
Specifications
| Color | Blue |
| Coupling Recommendation | C5 Field Attach, MegaCrimp |
| Cover Material | Polyester & Textile Braid |
| Cover Type | Oil & Mildew Resistant |
| Dash Size | 20 |
| Industrial Description | 20C5CXHX50FT |
| Inside Diameter 1 (in) | 1-1/8 in (2.87 cm) |
| Length | 220 ft (67.05 m) |
| Maximum Pressure | 625 psi (43.09 bar) |
| Minimum Burst Pressure (PSI) | 2500 psi (172.37 bar) |
| Outside Diameter | 1-1/2 in (3.81 cm) |

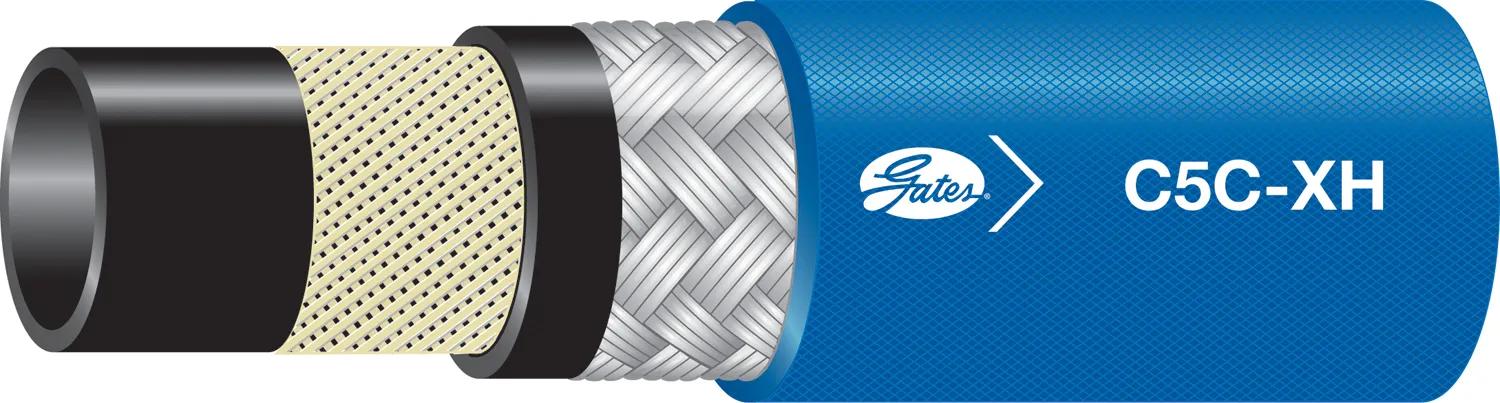

| Product Type | C5CXH XTreme Heat Hose - SAE 100R5 |
| Radius | 9 in (22.86 cm) |
| Reinforcement | Braided High Tensile Wire & Textile |
| Standard | SAE 100R5 |
| Temperature Range | -40°F @ 302°F (-40°C @ 150°C) |
| Tube Description | Black, Oil & Heat Resistant, Synthetic Polymer Tube |
| Type | Medium Pressure |
Interchanges & Equivalent parts:
| 86998 |
| 20C5CXHX50FT |
| 20620 |
| 04030406 |
| 36584007 |
