Hydraulic Hose, Le: 220 pi, ID: 1/2 in, MegaCrimp
#GAT71004
Product Overview

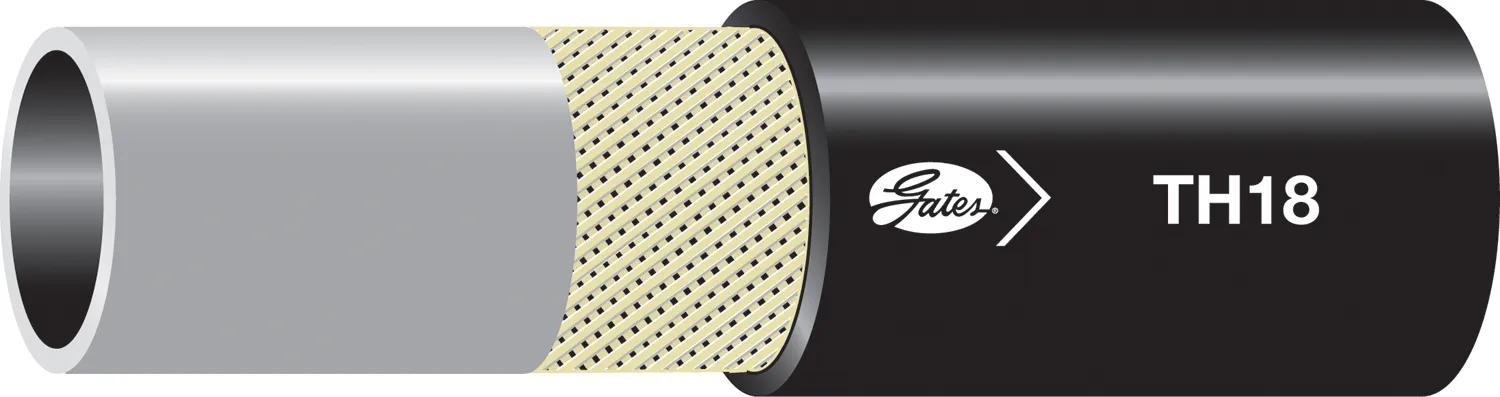

TH18 Hose Meets or Exceeds Performance Requirements of SAE 100R18 w/ a Significantly Tighter Bend Radius. Suitable for Petroleum or SyntheticûBased Hydraulic Fluids in Hydraulic Systems.
Features & Benefits
- TH18 is Ideal for Industrial & Agricultural Applications Exposed to Low Temperatures or Cyclic & Quick Temperature Changes. Remains Highly Flexible in Cold Weather Conditions & is Resistant to Hydraulic Fluids, High Temperatures, Aging & Weathering.
- Temperature Range: -67 Deg F - +212 Deg F (-55 Deg C - +100 Deg C) Continuous Service for Petroleum & Synthetic Oils. Max of +158 Deg F (+70 Deg C) for WaterûBased Fluids.
- Recommended Couplings: MegaCrimp.
Specifications
| Color | Black |
| Coupling Recommendation | MegaCrimp |
| Cover Material | Urethane - Perforated |
| Cover Type | Weather Resistant |
| Dash Size | 8 |
| Industrial Description | 8TH18XCTN |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 220 ft (67.05 m) |
| Maximum Pressure | 3000 psi (206.84 bar) |
| Minimum Burst Pressure (PSI) | 12000 psi (827.36 bar) |
| Outside Diameter | 57/64 in (2.26 cm) |
| Product Type | TH18 Constant Pressure Hydraulic Hose - SAE 100R18 |
| Radius | 2-51/64 in (7.11 cm) |
| Reinforcement | Synthetic Fiber |
| Standard | SAE 100R18 |
| Temperature Range | -67°F @ 212°F Petroleum & Synthetic Oils, @ 158°F Water-Based Fluids |
| Tube Description | Polyester Elastomer |
| Type | High Pressure |
Interchanges & Equivalent parts:
| 71004 |
| 8TH18XCTN |
| 30CT08003 |
| 3TR18CT08250BX |
| 04030590 |
