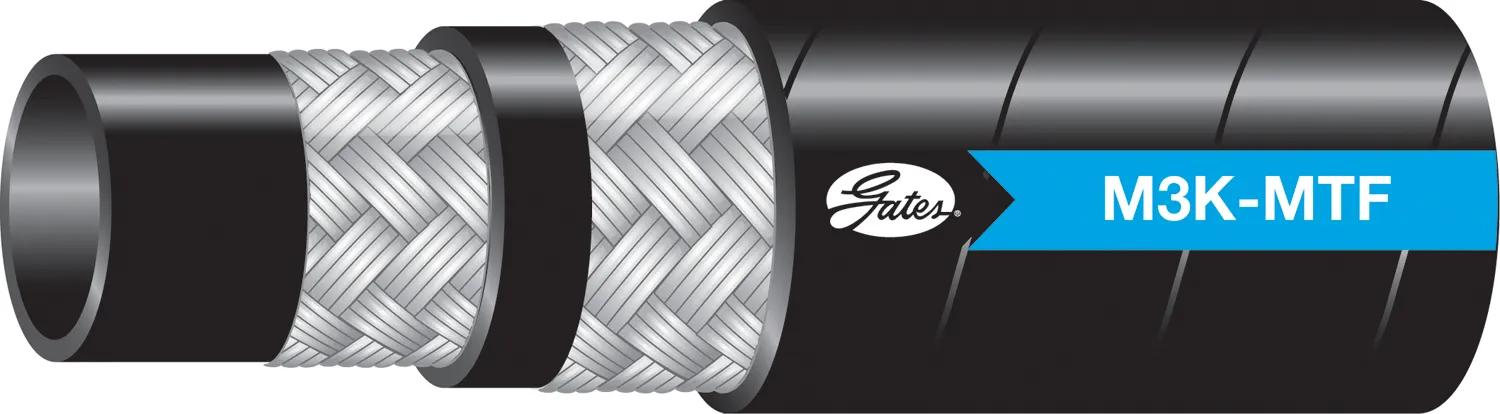

Hydraulic Hose, Le: 220 pi, ID: 3/4 in
#GAT85529
Product Overview
Recommended for High-Pressure Hydraulic Oil Lines. Exceeds SAE 100R17 & ISO11237 R17 Working Pressure, Minimum Bend Radius Requirements & Performance Requirements of EN 857 1SC.
Features & Benefits
- M3K Hose Has Smaller Exterior Dimensions & Significantly Tighter Bend Radius than Other SAE 100R1 & 100R2 Hose. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). MegaTuff Hose Lasts up to 300 Times Longer than Standard Hose During Hose-to-Hose & Hose-to-Metal Abrasion Tests Per ISO 6945.
- Recommended Couplings: GlobalSpiral, MegaCrimp & Stainless Steel B.
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Dash Size | 12 |
| Industrial Description | 12M3K-MTFX50FT |
| Inside Diameter 1 (in) | 3/4 in (1.91 cm) |
| Length | 220 ft (67.05 m) |
| Maximum Pressure | 3250 psi (224.08 bar) |
| Minimum Burst Pressure (PSI) | 13000 psi (896.3 bar) |
| Outside Diameter | 1-5/32 in (2.94 cm) |
| Product Type | Global M3K Mega3000 Hose - SAE 100R17 - MegaTuff Cover |
| Radius | 3-51/64 in (9.65 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R17 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| H54512 |
| 85529 |
| 12M3KMTFX50FT |
| 04029921 |
| 46574029 |
