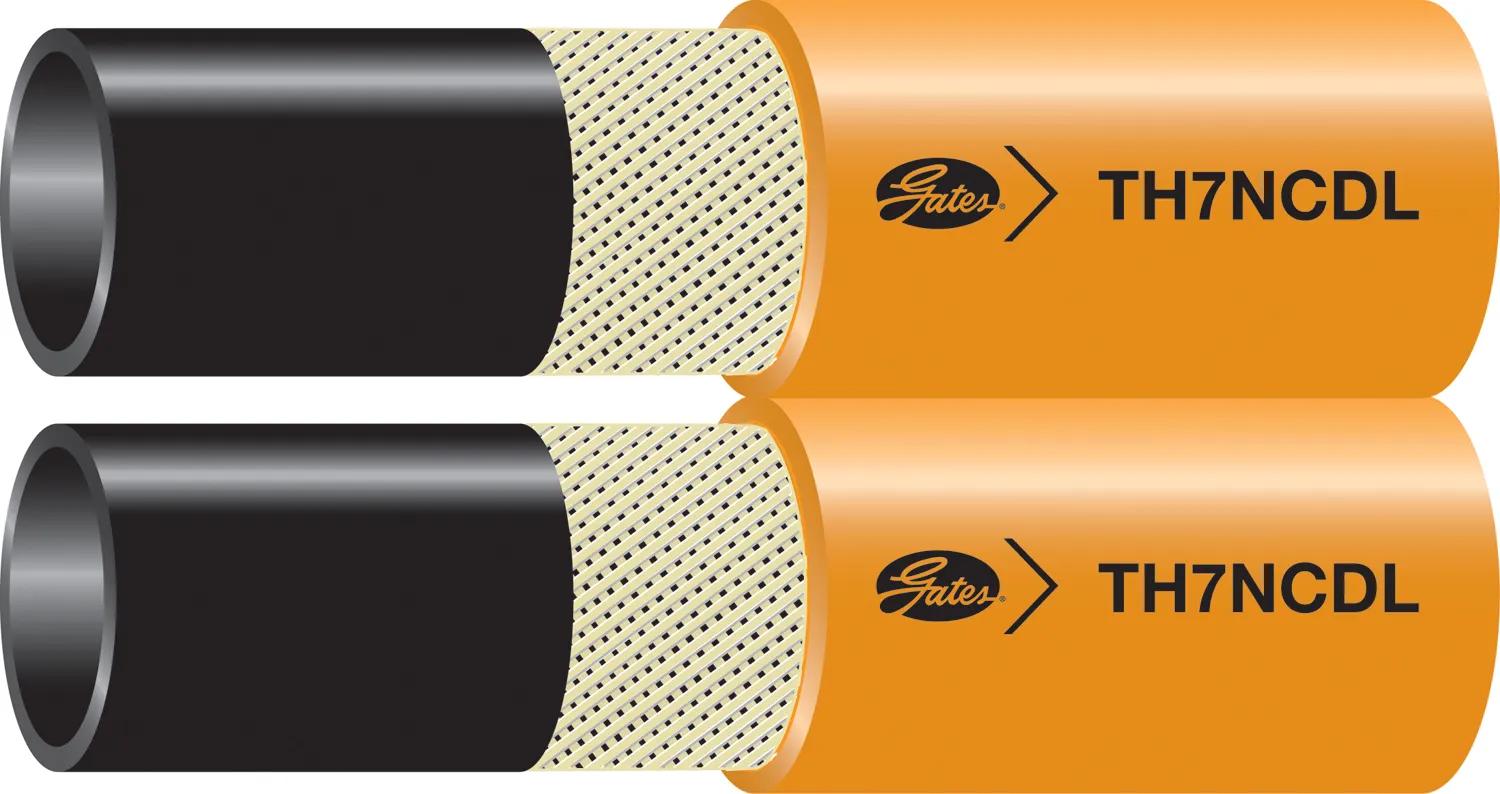

Hydraulic Hose, Le: 220 pi, ID: 3/8 in, MegaCrimp
#GAT71088
Product Overview
Recommended for Petroleum & Synthetic Hydraulic Fluids. Applications Include: Power & Telephone Mobile Equipment (Cherry Pickers), Lubrication Lines, Blowout Preventer Control Lines, Hydraulic Lifts & Farm & Construction Machinery.
Features & Benefits
- Orange Color TH7NC Meets SAE 100R7 NonûConductivity Requirements & Meets or Exceeds Performance Requirements of SAE 100R7 w/ a Significantly Tighter Bend Radius. Meets ANSI A92.2 for Vehicle Mounted Aerial Devices (Sizes 3 & 8).
- Temperature Range: -65 Deg F - +200 Deg F (-54 Deg C - +93 Deg C) (Petroleum & Synthetic Oils), to +158 Deg F (+70 Deg C) (Water/Oil & Water Glycol).
- Recommended Couplings: MegaCrimp.
Specifications
| Couleur | Orange |
| Recommandation d'accouplement | MegaCrimp |
| Matériau du couvercle | Urethane - Non-Perforated for Applications Requiring Electrical Non-Conductivity |
| Type de housse | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Dash Size | 6 |
| Description industrielle | 6TH7NCDLXCTN |
| Diam. intérieur 1 (po) | 3/8 po (0,97 cm) |
| Longueur | 220 ft (67,05 m) |
| Matériel | Nylon |
| Maximum Pressure | 2250 psi (155.13 bar) |
| Minimum Burst Pressure (PSI) | 9000 psi (620.52 bar) |
| Outside Diameter | 41/64 in (1.63 cm) |
| Product Type | TH7NCDL Non-Conductive Dual Line Hydraulic Hose - SAE 100R7 |
| Radius | 2-3/4 in (6.99 cm) |
| Reinforcement | Synthetic Fiber |
| Standard | SAE 100R7 |
| Temperature Range | -65°F @ 200°F Petroleum & Synthetic Oils, @ 158°F Water/Oil & Water Glycol |
| Tube Description | Nylon |
| Type | Moyenne pression |
Interchanges & Equivalent parts:
| H43566250R |
| 13756 |
| 71088 |
| 6TH7NCDLXCTN |
| 04030584 |
| 44720227 |
