Hydraulic Hose, Le: 220 pi, ID: 3/8 in
#GAT70570
Product Overview
Recommended for High-Pressure Hydraulic Oil Lines. Exceeds SAE 100R17 & ISO11237 R17 Working Pressure, Minimum Bend Radius Requirements & Performance Requirements of EN 857 1SC.
Features & Benefits
- M3K Hose Has Smaller Exterior Dimensions & Significantly Tighter Bend Radius than Other SAE 100R1 & 100R2 Hose. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). XtraTuff Hose Lasts up to 25 Times Longer than Standard Hose During hose-to-Hose & Hose-to-Metal Abrasion Tests Per ISO 6945.
- Recommended Couplings: GlobalSpiral, MegaCrimp, Power Crimp (Size 3) & Stainless Steel B.
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant - XtraTuff Cover |
| Dash Size | 6 |
| Industrial Description | 6M3K-XTFXREEL |
| Inside Diameter 1 (in) | 3/8 in (0.97 cm) |
| Length | 220 ft (67.05 m) |
| Maximum Pressure | 3250 psi (224.08 bar) |
| Minimum Burst Pressure (PSI) | 13000 psi (896.3 bar) |
| Outside Diameter | 5/8 in (1.6 cm) |

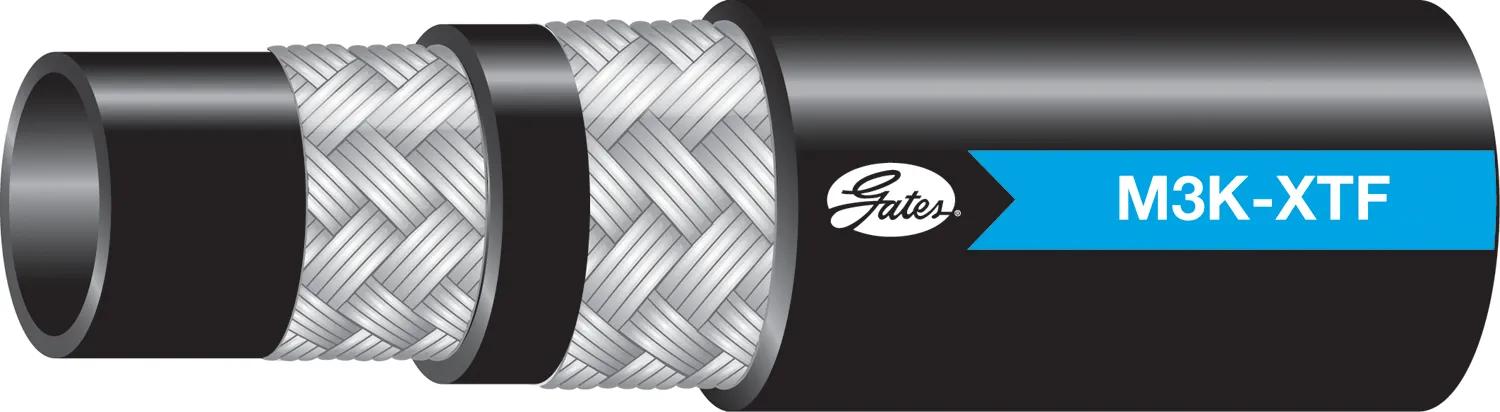

| Product Type | Global M3K Mega3000 Hose - SAE 100R17 - XtraTuff Cover |
| Radius | 2 in (5.08 cm) |
| Reinforcement | One Braid; High-Tensile Steel Wire |
| Standard | SAE 100R17 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| 451TC6 |
| 451TC66BX |
| 451TC66RL |
| 451TC66RTL25 |
| 451TC66RTL50 |
| 70570 |
| 451TC6BX |
| 451TC6RL |
| 6M3KXTFXREEL |
| XCP306 |
| AM06 |
| 387TC6 |
| 04029929 |
| 46571098 |
