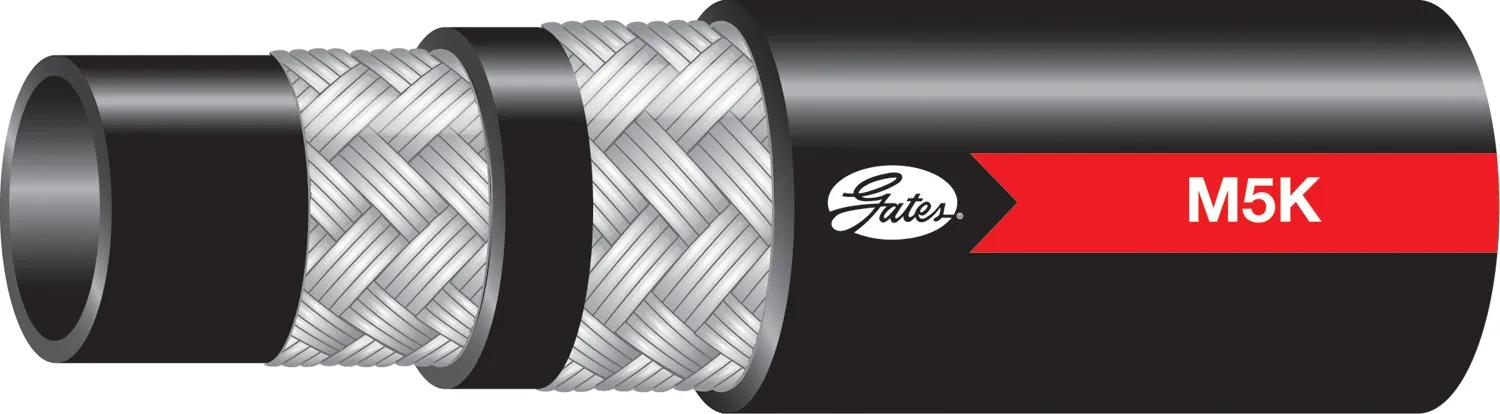

Hydraulic Hose, Le: 25 pi, ID: 1/2 in, MegaCrimp
#GAT70598
Product Overview
Recommended for High-Pressure Hydraulic Applications. Provides Tighter than Standard Minimum Bend Radius & Greater Flexibility for Easier Plumbing. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). Recommended Couplings: GlobalSpiral, MegaCrimp & Stainless Steel B.
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Polychloroprene - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant |
| Dash Size | 8 |
| Industrial Description | 8M5KXREEL |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 25 ft (7.62 m) |
| Maximum Pressure | 5000 psi (344.73 bar) |
| Minimum Burst Pressure (PSI) | 20000 psi (1378.93 bar) |
| Outside Diameter | 55/64 in (2.18 cm) |
| Product Type | Global M5K Mega5000 Hose |
| Radius | 3-1/2 in (8.89 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| 70598 |
| 8M5KXREEL |
| 04029802 |
| 46572650 |
