Hydraulic Hose, Le: 25 pi, ID: 1/2 in
#GAT70749
Product Overview
Recommended for Pilot Lines, Grease Lines & Pressure Return Lines, 500 psi or Less Pressure Applications. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). Recommended Coupling: GL, GlobalSpiral (Sizes 6 - 16) & MegaCrimp.
Specifications
| Color | Black |
| Coupling Recommendation | GLP, GlobalSpiral, MegaCrimp |
| Cover Material | Synthetic Rubber - Nitrile/PVC - C2 |
| Cover Type | Type C2 - Oil, Abrasion Resistant & Flame Resistance |
| Dash Size | 8 |
| Industrial Description | 8M500XREEL |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 25 ft (7.62 m) |
| Maximum Pressure | 500 psi (34.47 bar) |
| Minimum Burst Pressure (PSI) | 2000 psi (137.89 bar) |
| Outside Diameter | 49/64 in (1.96 cm) |

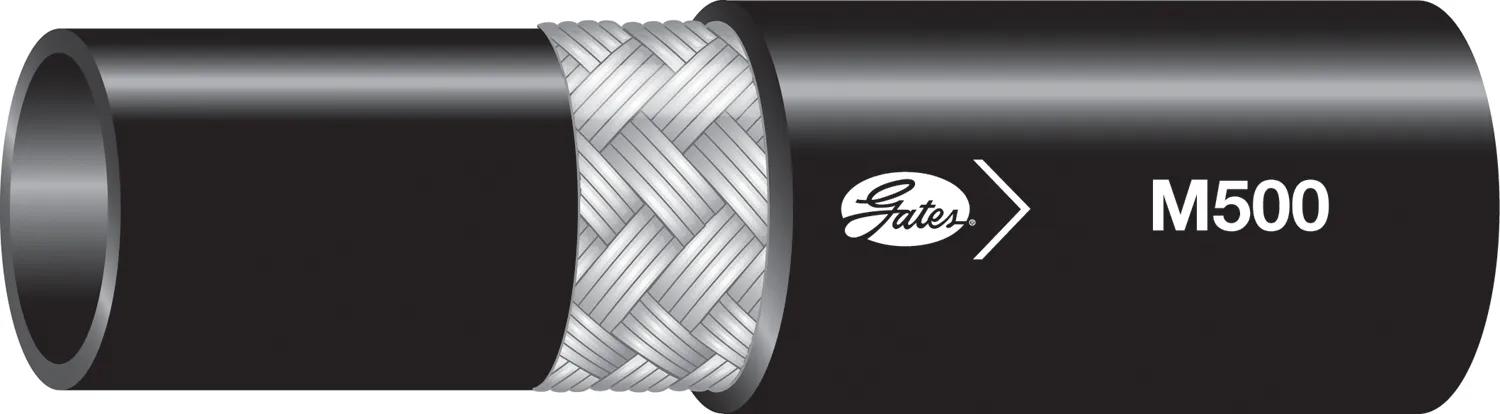

| Product Type | M500 Wire Braid Hose |
| Radius | 3-1/2 in (8.89 cm) |
| Reinforcement | One Braid; High-Tensile Steel Wire |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Synthetic Rubber |
| Type | Low Pressure |
Interchanges & Equivalent parts:
| 70749 |
| 8M500XREEL |
| 04030198 |
| 46578029 |
