Hydraulic Hose, Le: 25 pi, ID: 1/2 in
#GAT70873
Product Overview
Recommended for Extremely High Pressure Hydraulic Applications.
Features & Benefits
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- EFG5K is Designed to Meet or Exceed all Requirements of SAE 100R13 Specifications & Performance Requirements of EN 856 4SH (Sizes 16 & 20), EN 856 4SP (Sizes 10 & 12), EN 856 R13 & ISO 3862 Type R13 (Sizes 12, 16, 20, 24 & 32).
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). MegaTuff Hose Lasts up to 300 Times Longer than Standard Hose During Hose-to-Hose & Hose-to-Metal Abrasion Tests Per ISO 6945.
- Recommended Couplings: GlobalSpiral, GlobalSpiral MAX Pressure & Stainless Steel S.
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, Stainless Steel S |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Dash Size | 8 |
| Industrial Description | 8EFG5K-MTFXCTN |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 25 ft (7.62 m) |
| Maximum Pressure | 5000 psi (344.73 bar) |
| Minimum Burst Pressure (PSI) | 20000 psi (1378.93 bar) |
| Outside Diameter | 15/16 in (2.38 cm) |

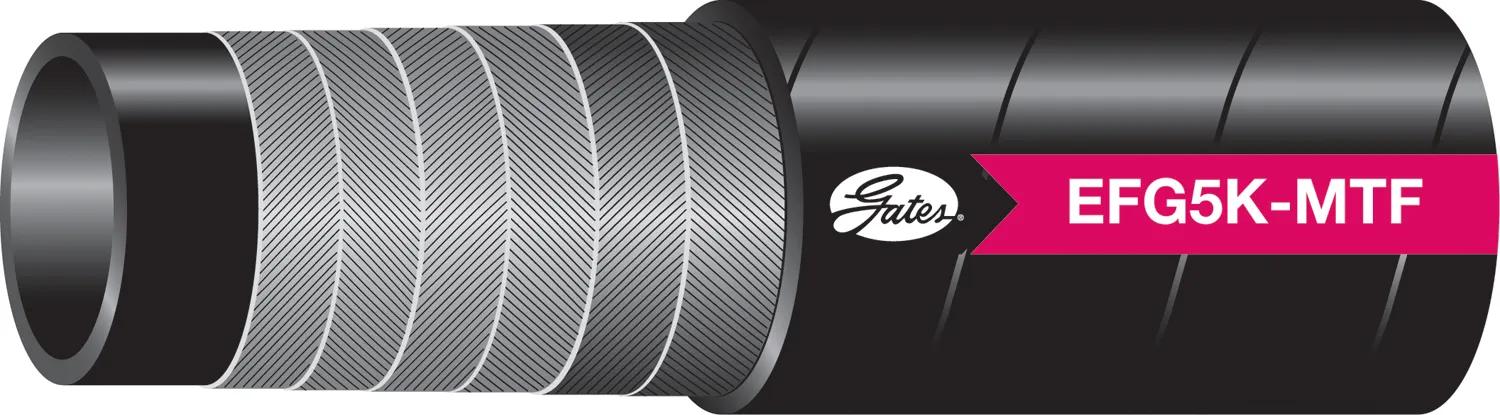

| Product Type | EFG5K Spiral Wire Hose - SAE 100R13 - MegaTuff Cover |
| Radius | 3-1/2 in (8.89 cm) |
| Reinforcement | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Standard | SAE 100R13 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Extremely High Pressure Hose |
Interchanges & Equivalent parts:
| AR1508X100 |
| FC73608 |
| 772TC8 |
| 787TC8 |
| 70873 |
| 8EFG5KMTFXCTN |
| 787ST8 |
| 04029700 |
| 46511608 |
