Hydraulic Hose, Le: 25 pi, ID: 3/8 in
#GAT70031
Product Overview
Recommended for Petroleum-Base Hydraulic oils, Glycol Antifreeze Compounds, Water, Engine Lubricating Oils & Air.
Features & Benefits
- Lock-On Hose & Couplings are Not Recommended for Vibration or Pressure Surge Applications, Such as Permanent Piping in Residential or Commercial Buildings.
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). For Air: -40 Deg F - +160 Deg F (-40 Deg C - +71 Deg C). Recommended Couplings: Field Attachable LOC & GLP (Use Clamp Over Beaded Nipple).
- Meets SAE 30R2, SAE 30R6 & SAE 30R7 Performance Requirements for Fuel & B20 Biodiesel Fuel Transfer Applications Up to +125 Deg F.
Specifications
| Color | Black |
| Coupling Recommendation | Field Attachable LOC Couplings, GLP |
| Cover Material | Textile Braid Impregnated w/ Synthetic Rubber |
| Cover Type | Oil & Mildew Resistant |
| Dash Size | 6 |
| Industrial Description | 6LOCXREEL |
| Inside Diameter 1 (in) | 3/8 in (0.97 cm) |
| Length | 25 ft (7.62 m) |
| Maximum Pressure | 300 psi (20.68 bar) |
| Minimum Burst Pressure (PSI) | 1200 psi (82.74 bar) |
| Outside Diameter | 41/64 in (1.63 cm) |

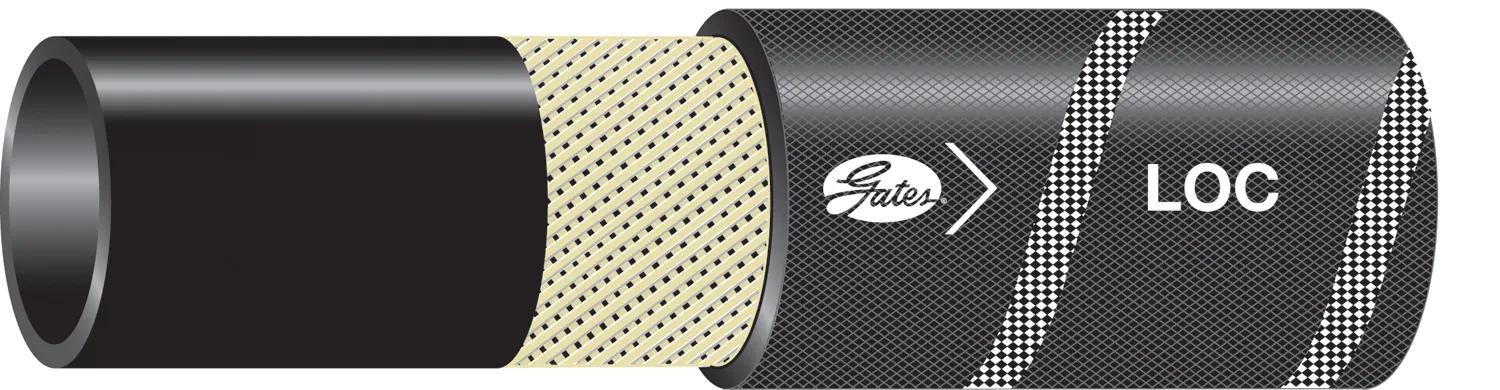

| Product Type | LOC 1-Fiber Braid Lock-On Hose |
| Radius | 3 in (7.62 cm) |
| Reinforcement | One Fiber Braid |
| Standard | SAE 30R2; 30R6; 30R7 |
| Temperature Range | -40°F @ 250°F, @ 160°F (Air) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Low Pressure |
Interchanges & Equivalent parts:
| IGTC06X500 |
| H10005250R |
| 12036 |
| FC64706BLK |
| FC64706BLKRL |
| 8216 |
| 8216BX |
| 8216RL |
| 70031 |
| 6LOCXREEL |
| FC647-06BLK |
| FC647-06BLK-RL |
| 04030308 |
| 43190113 |
