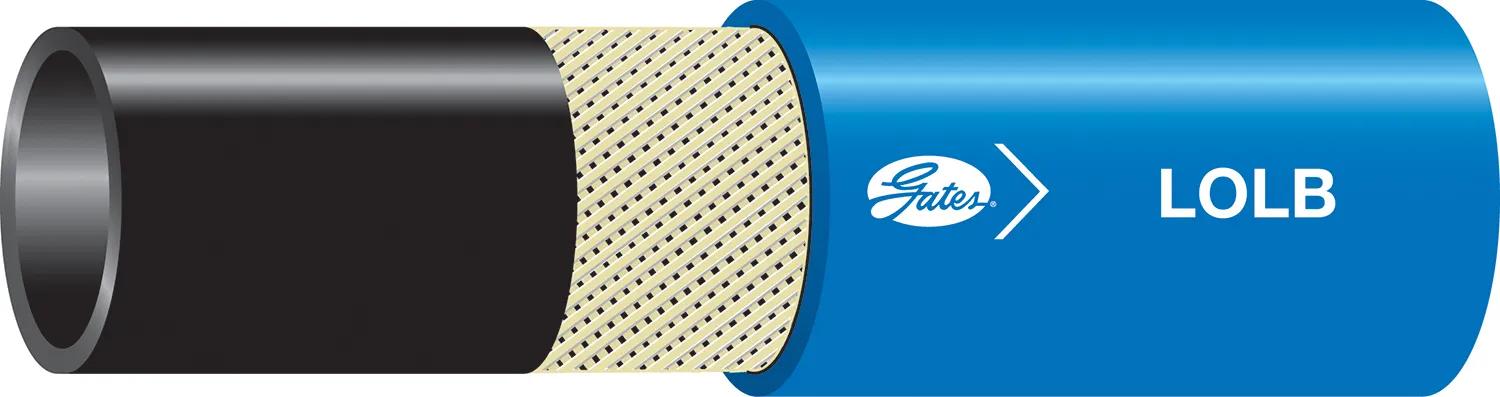

Hydraulic Hose, Le: 250 pi, ID: 1/2 in, GlobalSpiral
#GAT70673
Product Overview
Recommended for Petroleum-Base Hydraulic Oils, Glycol Antifreeze Compounds, Water, Engine Lubricating Oils & Air.
Features & Benefits
- Recommended Couplings: Field Attachable LOL (Except Size 3), GLP (Except Size 3) & GLX (Sizes 4, 6, 8, & 12). Use Clamps Over Beaded Nipple. Special Order Couplings May Be Needed.
- Lock-On Hose & Couplings are Not Recommended for Pressure Surge Applications or Critical Applications, Such as Permanent Piping in Residential or Commercial Buildings.
- Do not Use for Gasoline or Diesel Fuels, Unless Approved by Gates H/C Product Application. Black Cover Only Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperatures Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C); For Air: -40 Deg F - +160 Deg F (-40 Deg C to +71 Deg C).
Specifications
| Application | Petroleum Based Hydraulic Oils, Water, Glycol Anti-Freeze Solutions, Engine Lubricating Oils & Air |
| Avertir | LOL Lock-On Hose is Packaged in UPS Shippable Reels. The Use of Clamps w/ LOC Couplings is Not Recommended. |
| Couleur | Blue |
| Recommandation d'accouplement | Field Attachable LOC, GLP, GLX |
| Matériau du couvercle | Synthetic Rubber - Modified Nitrile - Type C2 |
| Type de housse | Type C2 - Oil & Abrasion Resistant |
| Dash Size | 8 |
| Description industrielle | 8LOLBXREEL |
| Diam. intérieur 1 (po) | 1/2 po (1,27 cm) |
| Longueur | 250 ft (76,2 m) |
| Pression maximale | 300 psi (20.68 bar) |
| Pression minimale d'éclatement (PSI) | 1200 psi (82.74 bar) |
| Diamètre extérieur | 49/64 in (1.96 cm) |
| Type de produit | LOL Plus Lock-On Hose |
| Rayon | 5 in (12.7 cm) |
| Renforcement | One Fiber Braid |
| Plage de température | -40°F @ 212°F, @ 160°F (Air) |
| Tuyau - Description | Black, Highly Heat & Oil-Resistant, Synthetic Rubber |
| Type | Basse pression |
| Vacuum Rating | 28 inhg (13.76 psi) |
Interchanges & Equivalent parts:
| IGBLU08X500 |
| UGBLU08X500 |
| H10108250R |
| H20108BU250R |
| 8018BLUBX |
| 8018BLURL |
| 8318BLURL |
| 70673 |
| 8LOLBXREEL |
| 04030347 |
| 32842515 |
