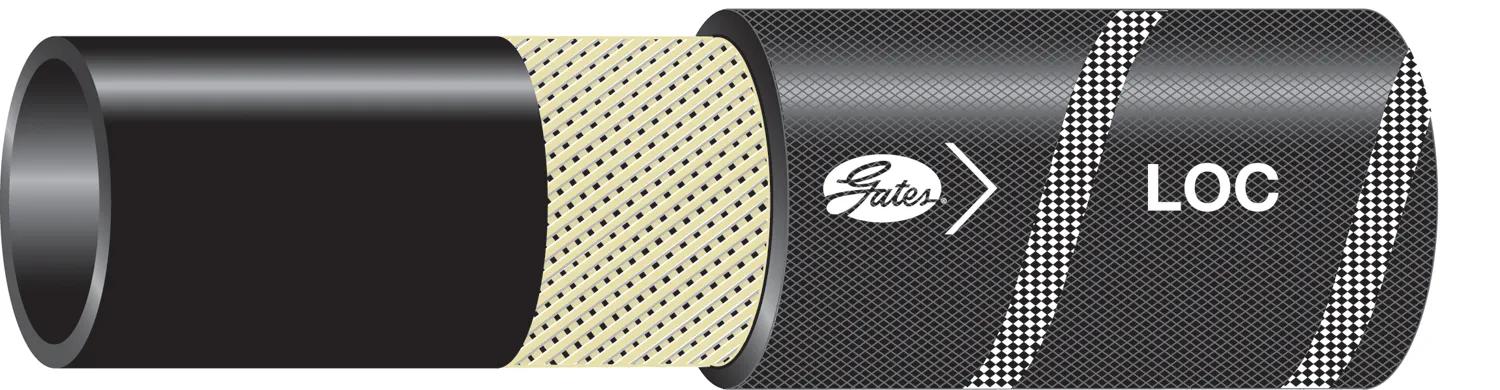

Hydraulic Hose, Le: 250 pi, ID: 5/8 in, GlobalSpiral
#GAT70033
Product Overview
Recommended for Petroleum-Base Hydraulic oils, Glycol Antifreeze Compounds, Water, Engine Lubricating Oils & Air.
Features & Benefits
- Lock-On Hose & Couplings are Not Recommended for Vibration or Pressure Surge Applications, Such as Permanent Piping in Residential or Commercial Buildings.
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). For Air: -40 Deg F - +160 Deg F (-40 Deg C - +71 Deg C). Recommended Couplings: Field Attachable LOC & GLP (Use Clamp Over Beaded Nipple).
- Meets SAE 30R2, SAE 30R6 & SAE 30R7 Performance Requirements for Fuel & B20 Biodiesel Fuel Transfer Applications Up to +125 Deg F.
Specifications
| Couleur | Black |
| Recommandation d'accouplement | Field Attachable LOC Couplings, GLP |
| Matériau du couvercle | Textile Braid Impregnated w/ Synthetic Rubber |
| Type de housse | Oil & Mildew Resistant |
| Dash Size | 10 |
| Description industrielle | 10LOCXREEL |
| Diam. intérieur 1 (po) | 5/8 po (1,6 cm) |
| Longueur | 250 ft (76,2 m) |
| Pression maximale | 300 psi (20.68 bar) |
| Pression minimale d'éclatement (PSI) | 1200 psi (82.74 bar) |
| Outside Diameter | 29/32 in (2.31 cm) |
| Product Type | LOC 1-Fiber Braid Lock-On Hose |
| Radius | 6 in (15.24 cm) |
| Reinforcement | One Fiber Braid |
| Standard | SAE 30R2; 30R6; 30R7 |
| Temperature Range | -40°F @ 250°F, @ 160°F (Air) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Basse pression |
Interchanges & Equivalent parts:
| IGTC10X500 |
| H10010 |
| H10010250R |
| 012010 |
| 12010 |
| FC64710BLK |
| 82110 |
| 82110BX |
| 82110RL |
| 70033 |
| 10LOCXREEL |
| 4319-0115 |
| FC647-10BLK |
| 152510 |
| 04030312 |
| 43190115 |
