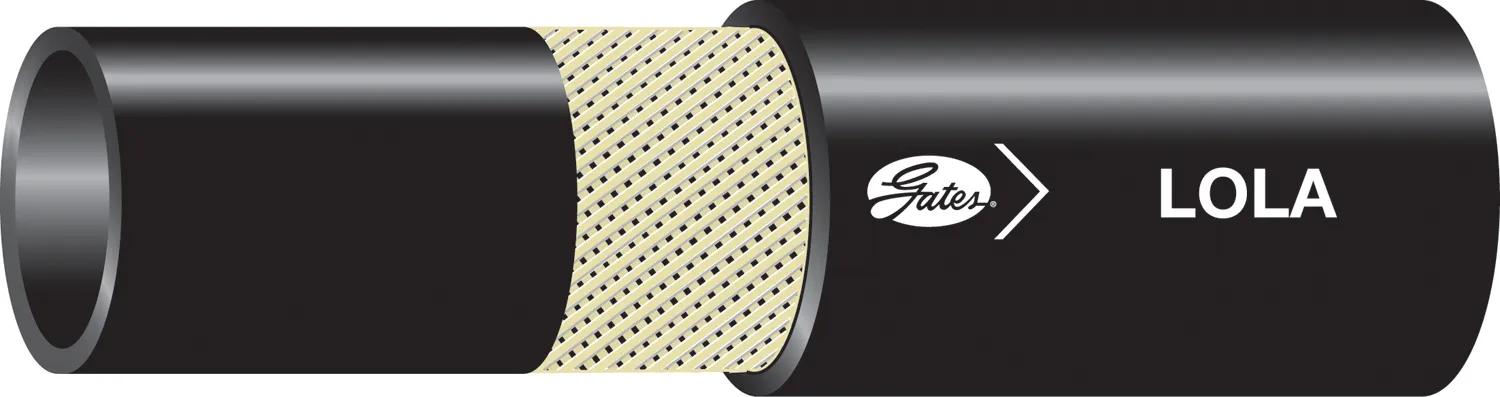

Hydraulic Hose, Le: 250 pi, ID: 5/8 in, GlobalSpiral

#GAT70679

Product Overview

Recommended for Petroleum-Base Hydraulic Oils, Glycol Antifreeze Compounds, Water, Engine Lubricating Oils & Air.

Recommended Couplings: Field Attachable LOL (Except Size 3), GLP (Except Size 3) & GLX (Sizes 4, 6, 8, & 12). Use Clamps Over Beaded Nipple. Special Order Couplings May Be Needed.

Lock-On Hose & Couplings are Not Recommended for Pressure Surge Applications or Critical Applications, Such as Permanent Piping in Residential or Commercial Buildings.

Do not Use for Gasoline or Diesel Fuels, Unless Approved by Gates H/C Product Application. Black Cover Only Meets Flame Resistance Acceptance Designation MSHA 2G.

Temperatures Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C); For Air: -40 Deg F - +160 Deg F (-40 Deg C to +71 Deg C).

Application	Petroleum Based Hydraulic Oils, Water, Glycol Anti-Freeze Solutions, Engine Lubricating Oils & Air
Caution	LOL Lock-On Hose is Packaged in UPS Shippable Reels. The Use of Clamps w/ LOC Couplings is Not Recommended.
Color	Black
Coupling Recommendation	Field Attachable LOC, GLP
Cover Material	Synthetic Rubber - Modified Nitrile - Type C2
Cover Type	Type C2 - Flame, Oil & Abrasion Resistant
Dash Size	10
Industrial Description	10LOLAXREEL
Inside Diameter 1 (in)	5/8 in (1.6 cm)
Length	250 ft (76.2 m)
Maximum Pressure	300 psi (20.68 bar)
Minimum Burst Pressure (PSI)	1200 psi (82.74 bar)
Outside Diameter	15/16 in (2.38 cm)
Product Type	LOL Plus Lock-On Hose
Radius	6 in (15.24 cm)
Reinforcement	One Fiber Braid
Temperature Range	-40°F @ 212°F, @ 160°F (Air)
Tube Description	Black, Highly Heat & Oil-Resistant, Synthetic Rubber
Type	Low Pressure
Vacuum Rating	28 inhg (13.76 psi)

IGBLK10X500

UGBLK10X500

H20110250R

H10110250R

H20110

H20110BK250R

11960

257510RL

80110BLKRL

83110

B710

70679

10LOLAXREEL

2575-10RL

80110

04030342

32842505
