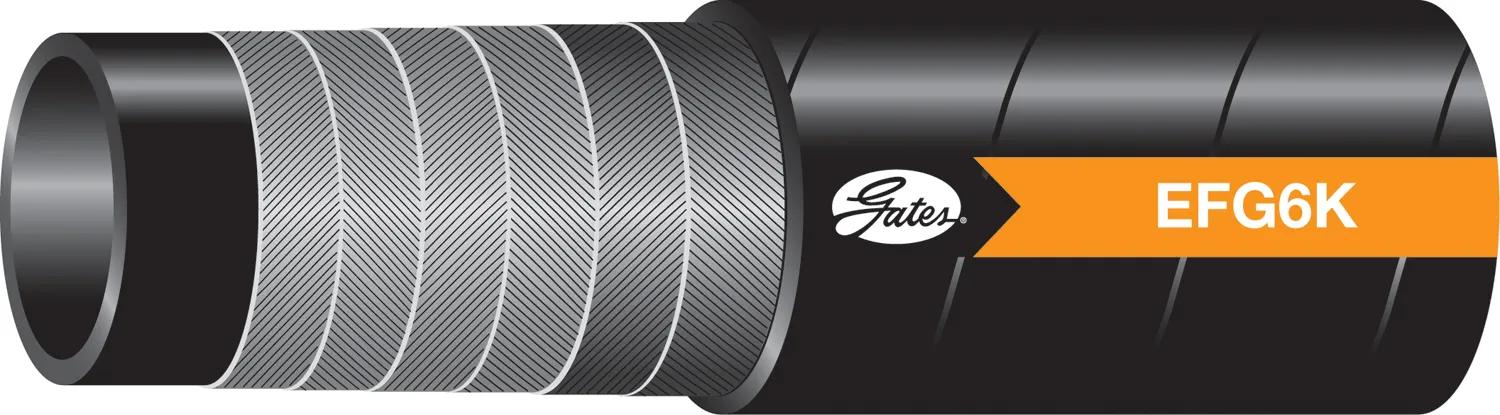

Hydraulic Hose, Le: 300 pi, ID: 13/32 in, MegaCrimp
#GAT70866
Product Overview
Recommended for Extremely High Pressure, High Impulse Applications Such as Hydrostatic Transmissions. Recommended for Extremely High Pressure, High Impulse Applications Such as Hydrostatic Transmissions.
Features & Benefits
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- EFG6K is Designed to Meet or Exceed All Requirements of SAE 100R15 Specifications & Performance Requirements of EN 856 4SP (Sizes 6, 8, 10 & 12), EN 856 4SH (Sizes 12, 16 & 20), and ISO 3862 Type R15 (Sizes 6, 8, 10, 12, 16 & 24).
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). Recommended Couplings: GlobalSpiral, GlobalSpiral MAX Pressure & Stainless Steel S (Sizes 6 - 20).
Specifications
| Couleur | Black |
| Recommandation d'accouplement | GlobalSpiral, Stainless Steel S |
| Matériau du couvercle | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Type de housse | Type A - Flame & Oil Resistant |
| Dash Size | 6 |
| Description industrielle | 6EFG6KXCTN |
| Diam. intérieur 1 (po) | 13/32 po (1,04 cm) |
| Longueur | 300 ft (91,44 m) |
| Maximum Pressure | 6000 psi (413.68 bar) |
| Minimum Burst Pressure (PSI) | 24000 psi (1654.72 bar) |
| Outside Diameter | 51/64 in (2.03 cm) |
| Product Type | EFG6K Spiral Wire Hose - SAE 100R15 |
| Radius | 2-1/2 in (6.35 cm) |
| Reinforcement | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Standard | SAE 100R15 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Tuyau à très haute pression |
Interchanges & Equivalent parts:
| G4SP06X100 |
| G4SP06X100CL |
| H43006100 |
| 7016 |
| 70866 |
| 6EFG6KXCTN |
| PA3506 |
| HSP06A |
| L106 |
| QX06 |
| GH4936 |
| GH49306 |
| 04029634 |
| 515006 |
| 46511396 |
