Hydraulic Hose, Le: 330 pi, ID: 1/2 in
#GAT71089
Product Overview
Recommended for Petroleum & Synthetic Hydraulic Fluids. Applications Include: Power & Telephone Mobile Equipment (Cherry Pickers), Lubrication Lines, Blowout Preventer Control Lines, Hydraulic Lifts & Farm & Construction Machinery.
Features & Benefits
- Orange Color TH7NC Meets SAE 100R7 NonûConductivity Requirements & Meets or Exceeds Performance Requirements of SAE 100R7 w/ a Significantly Tighter Bend Radius. Meets ANSI A92.2 for Vehicle Mounted Aerial Devices (Sizes 3 & 8).
- Temperature Range: -65 Deg F - +200 Deg F (-54 Deg C - +93 Deg C) (Petroleum & Synthetic Oils), to +158 Deg F (+70 Deg C) (Water/Oil & Water Glycol).
- Recommended Couplings: MegaCrimp.
Specifications
| Color | Orange |
| Coupling Recommendation | MegaCrimp |
| Cover Material | Urethane - Non-Perforated for Applications Requiring Electrical Non-Conductivity |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Dash Size | 8 |
| Industrial Description | 8TH7NCDLXCTN |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 330 ft (100.58 m) |
| Material | Nylon |
| Maximum Pressure | 2000 psi (137.89 bar) |
| Minimum Burst Pressure (PSI) | 8000 psi (551.57 bar) |
| Outside Diameter | 51/64 in (2.03 cm) |

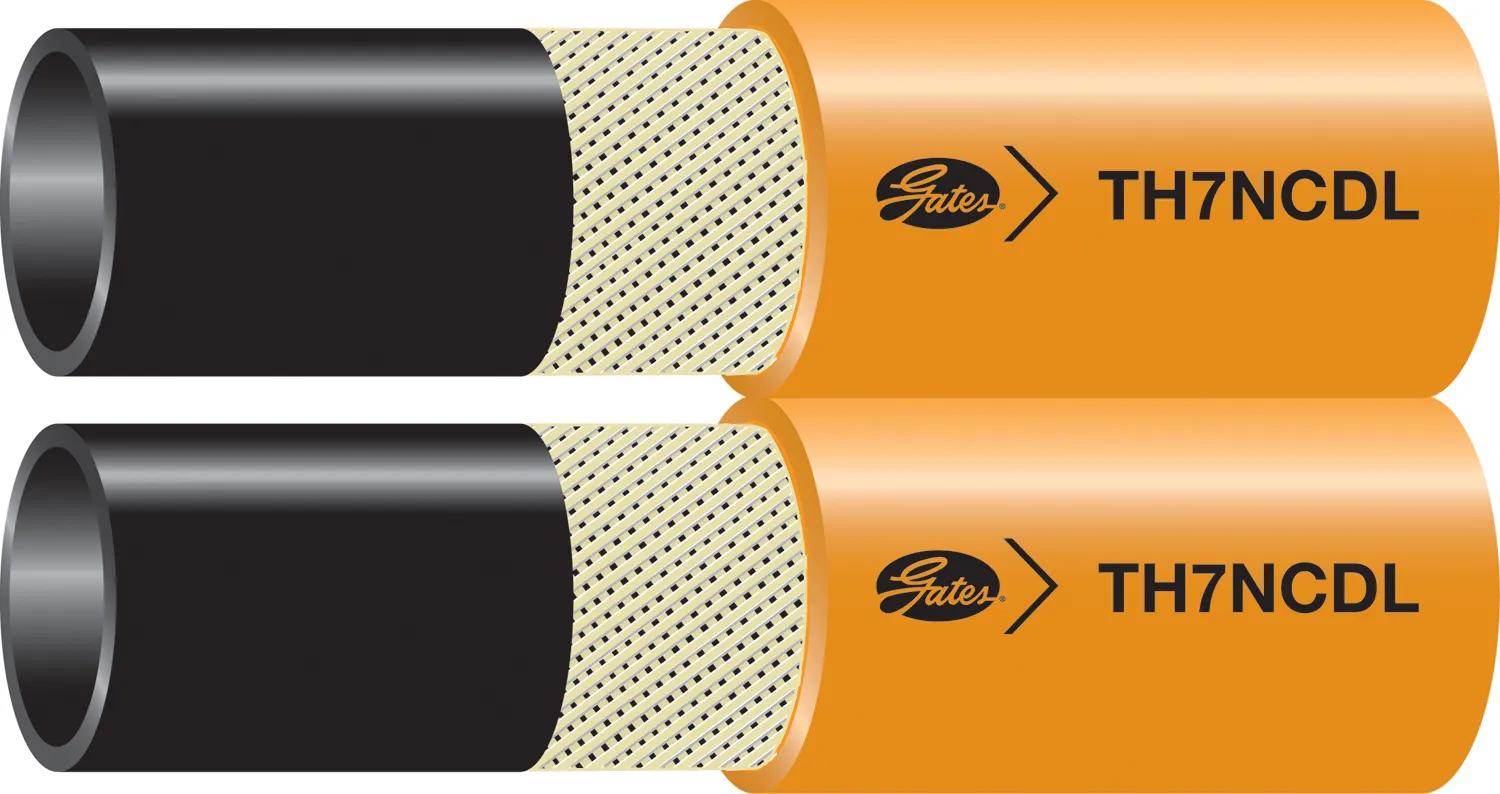

| Product Type | TH7NCDL Non-Conductive Dual Line Hydraulic Hose - SAE 100R7 |
| Radius | 3-3/4 in (9.53 cm) |
| Reinforcement | Synthetic Fiber |
| Standard | SAE 100R7 |
| Temperature Range | -65°F @ 200°F Petroleum & Synthetic Oils, @ 158°F Water/Oil & Water Glycol |
| Tube Description | Nylon |
| Type | Medium Pressure |
Interchanges & Equivalent parts:
| H43588250R |
| 71089 |
| 8TH7NCDLXCTN |
| H43588 |
| 04030586 |
| 44720229 |
