Hydraulic Hose, Le: 330 pi, ID: 1 in
#GAT70604
Product Overview
Recommended for Medium Pressure Hydraulic Lines. Meets or Exceeds the Requirements of SAE 100R1 Type S & ISO 1436 1SN R1, as Well as the Performance Requirements of EN 853 1SN. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C).
- Recommended Couplings: Field Attachable Type T, GlobalSpiral, GlobalSpiral Plus, MegaCrimp, MPGB (Size 3), Power Crimp (Size 3), Power Crimp Grease (Size 3) & Stainless Steel B (Sizes 4 - 12, 20 & 32).
Specifications
| Color | Black |
| Coupling Recommendation | Field Attachable T, GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Nitrile/PVC - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 16 |
| Industrial Description | 16G1XREEL |
| Inside Diameter 1 (in) | 1 po (2,54 cm) |
| Length | 330 ft (100,58 m) |
| Maximum Pressure | 1300 psi (89.63 bar) |
| Minimum Burst Pressure (PSI) | 5200 psi (358.52 bar) |
| Outside Diameter | 1-13/32 in (3.58 cm) |

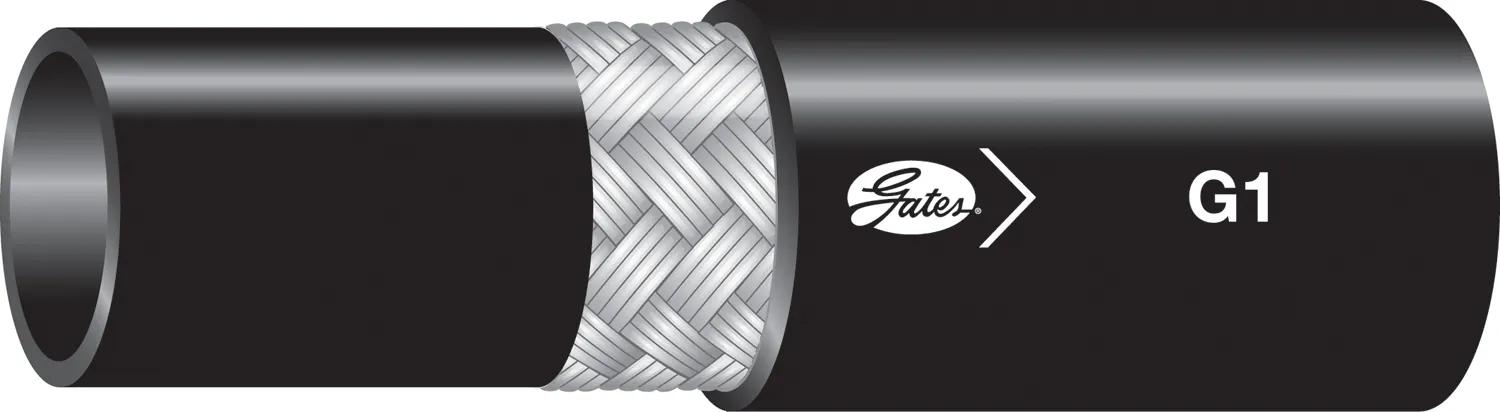

| Product Type | Global G1 1-Wire Braid Hose - SAE 100R1 Type AT |
| Radius | 12 in (30.48 cm) |
| Reinforcement | One Braid; High-Tensile Steel Wire |
| Standard | SAE 100R1 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Moyenne pression |
Interchanges & Equivalent parts:
| GYHGR1SN-16X250 |
| GR1SN16X250 |
| GR1SN-16X250 |
| GR1SN16X250RL |
| H10416250R |
| H19016250R |
| 268116 |
| FC21116 |
| FC21116RL |
| GH66316R150 |
| 42116 |
| AX16 |
| 70604 |
| 16G1XREEL |
| 2681-16 |
| FC211-16 |
| FC211-16RL |
| GH663-16R150 |
| 42216 |
| 04030087 |
| EC11516 |
| 46570124 |
