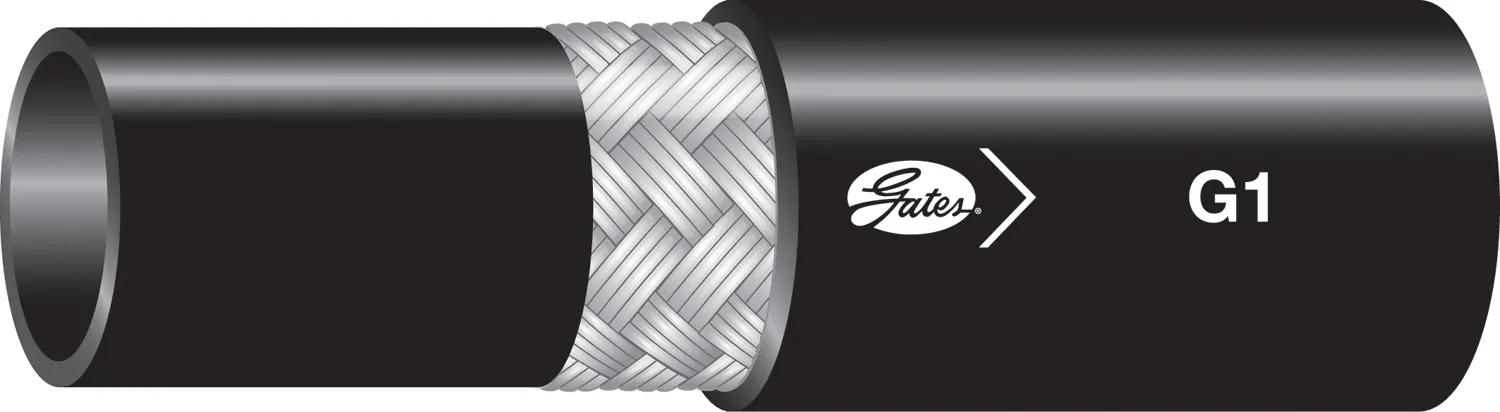

Hydraulic Hose, Le: 40 pi, ID: 1 in, MegaCrimp
#GAT70271
Product Overview
Recommended for Medium Pressure Hydraulic Lines. Meets or Exceeds the Requirements of SAE 100R1 Type S & ISO 1436 1SN R1, as Well as the Performance Requirements of EN 853 1SN. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C).
- Recommended Couplings: Field Attachable Type T, GlobalSpiral, GlobalSpiral Plus, MegaCrimp, MPGB (Size 3), Power Crimp (Size 3), Power Crimp Grease (Size 3) & Stainless Steel B (Sizes 4 - 12, 20 & 32).
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Nitrile/PVC - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 20 |
| Industrial Description | 20G1XCTN |
| Inside Diameter 1 (in) | 1 in (2.54 cm) |
| Length | 40 ft (12.19 m) |
| Maximum Pressure | 925 psi (63.78 bar) |
| Minimum Burst Pressure (PSI) | 3700 psi (255.1 bar) |
| Outside Diameter | 1-45/64 in (4.32 cm) |
| Product Type | Global G1 1-Wire Braid Hose - SAE 100R1 Type AT |
| Radius | 16 in (40.64 cm) |
| Reinforcement | One Braid; High-Tensile Steel Wire |
| Standard | SAE 100R1 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Medium Pressure |
Interchanges & Equivalent parts:
| GYHGR1SN-20X100 |
| GR1SN20X100 |
| GR1SN-20X100 |
| H10420 |
| GR1SN20X100CL |
| GR1SN20X50 |
| GR1SN20X50BX |
| H10420100 |
| 12720 |
| 268120 |
| GH66320 |
| 70271 |
| 20G1XCTN |
| 2681-20 |
| GH663-20 |
| 42220 |
| R1A20 |
| SR1SN20 |
| M20 |
| MX20 |
| 42120 |
| 04030090 |
| EC11520 |
| 501020 |
| 46570646 |
