Hydraulic Hose, Le: 40 pi, ID: 5/8 in
#GAT70162
Product Overview
Recommended for Extremely High Pressure Hydraulic Applications.
Features & Benefits
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- EFG5K is Designed to Meet or Exceed All Requirements of SAE 100R13 Specifications & Performance Requirements of EN 856 4SH (Sizes 16 & 20), EN 856 4SP (Sizes 10 & 12), EN 856 R13 & ISO 3862 Type R13 (Sizes 12, 16, 20, 24 & 32).
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). Recommended Couplings: GlobalSpiral, GlobalSpiral MAX Pressure & Stainless Steel S.
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, Stainless Steel S |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Dash Size | 10 |
| Industrial Description | 10EFG5KXREEL |
| Inside Diameter 1 (in) | 5/8 in (1.6 cm) |
| Length | 40 ft (12.19 m) |
| Maximum Pressure | 5000 psi (344.73 bar) |
| Minimum Burst Pressure (PSI) | 20000 psi (1378.93 bar) |
| Outside Diameter | 1-3/32 in (2.78 cm) |

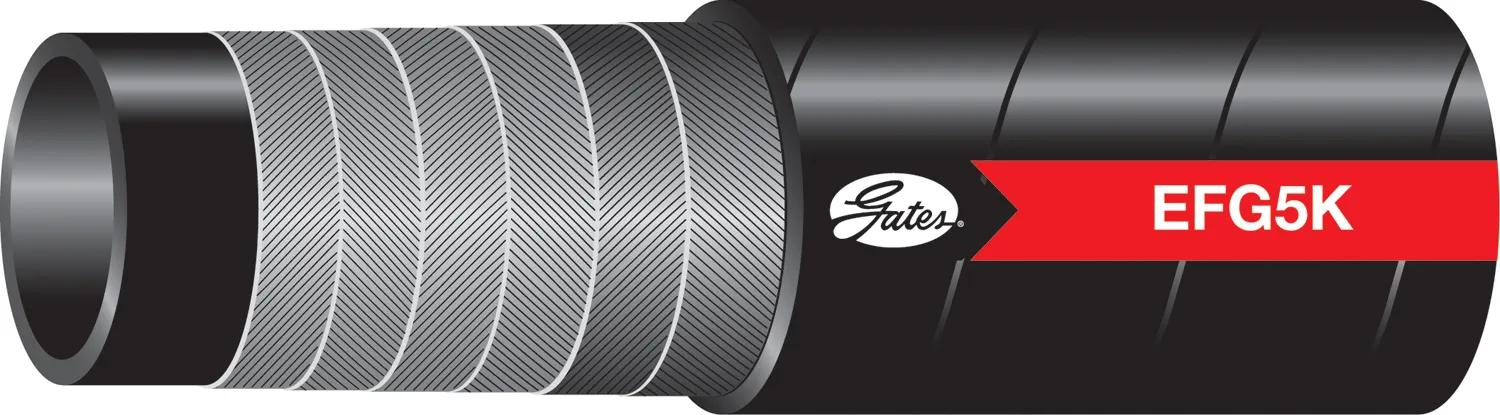

| Product Type | EFG5K Spiral Wire Hose - SAE 100R13 |
| Radius | 4 in (10.16 cm) |
| Reinforcement | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Standard | SAE 100R13 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Extremely High Pressure Hose |
Interchanges & Equivalent parts:
| 70162 |
| 10EFG5KXREEL |
| 78710 |
| 925007516 |
| 46510122 |
