Hydraulic Hose, Le: 50 pi, ID: 1-1/2 in, MegaCrimp
#GAT70241
Product Overview
Recommended for High-Pressure Hydraulic Oil Lines. Meets or Exceeds the Requirements of SAE 100R2, ISO1436 2SN R2 & EN 853 2SN. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -40 Deg F - +275 Deg F (-40 Deg C - +135 Deg C). Recommended Couplings: Field Attachable Type T (Sizes 20 & 24), GlobalSpiral, GlobalSpiral Plus, MegaCrimp (Size 20) & Stainless Steel B.
Specifications
| Couleur | Black |
| Recommandation d'accouplement | Field Attachable T, GlobalSpiral Plus, Stainless Steel B |
| Matériau du couvercle | Synthetic Rubber - CSM - Type M |
| Type de housse | Type M - Flame & Oil Resistant |
| Dash Size | 24 |
| Description industrielle | 24G2HXCTN |
| Diam. intérieur 1 (po) | 1-1/2 po (3,81 cm) |
| Longueur | 50 ft (15,24 m) |
| Pression maximale | 1300 psi (89.63 bar) |
| Pression minimale d'éclatement (PSI) | 5200 psi (358.52 bar) |
| Diamètre extérieur | 2-7/64 in (5.36 cm) |

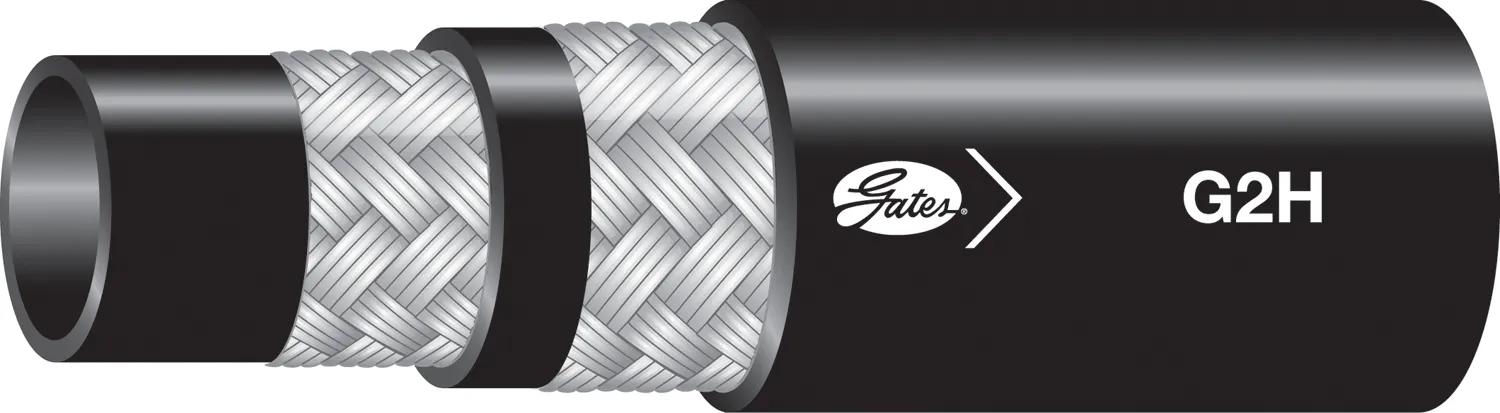

| Type de produit | Global G2H High-Temp 2-Wire Braid Hose - Type AT |
| Rayon | 20 in (50.8 cm) |
| Renforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R2 |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Haute pression |
Interchanges & Equivalent parts:
| HR2SN24X100 |
| HR2SN-24X100 |
| GYHHR2SN-24X100 |
| HR2SN24X100CL |
| 70241 |
| 24G2HXCTN |
| H29024 |
| 30124 |
| 04030050 |
| 46570931 |
