Hydraulic Hose, Le: 50 pi, ID: 1/2 in
#GAT70675
Product Overview
Recommended for Petroleum-Base Hydraulic Oils, Glycol Antifreeze Compounds, Water, Engine Lubricating Oils & Air.
Features & Benefits
- Recommended Couplings: Field Attachable LOL (Except Size 3), GLP (Except Size 3) & GLX (Sizes 4, 6, 8, & 12). Use Clamps Over Beaded Nipple. Special Order Couplings May Be Needed.
- Lock-On Hose & Couplings are Not Recommended for Pressure Surge Applications or Critical Applications, Such as Permanent Piping in Residential or Commercial Buildings.
- Do not Use for Gasoline or Diesel Fuels, Unless Approved by Gates H/C Product Application. Black Cover Only Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperatures Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C); For Air: -40 Deg F - +160 Deg F (-40 Deg C to +71 Deg C).
Specifications
| Application | Petroleum Based Hydraulic Oils, Water, Glycol Anti-Freeze Solutions, Engine Lubricating Oils & Air |
| Caution | LOL Lock-On Hose is Packaged in UPS Shippable Reels. The Use of Clamps w/ LOC Couplings is Not Recommended. |
| Color | Red |
| Coupling Recommendation | Field Attachable LOC, GLP, GLX |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Oil & Abrasion Resistant |
| Dash Size | 8 |
| Industrial Description | 8LOLRXREEL |
| Inside Diameter 1 (in) | 1/2 in (1.27 cm) |
| Length | 50 ft (15.24 m) |
| Maximum Pressure | 300 psi (20.68 bar) |
| Minimum Burst Pressure (PSI) | 1200 psi (82.74 bar) |
| Outside Diameter | 49/64 in (1.96 cm) |

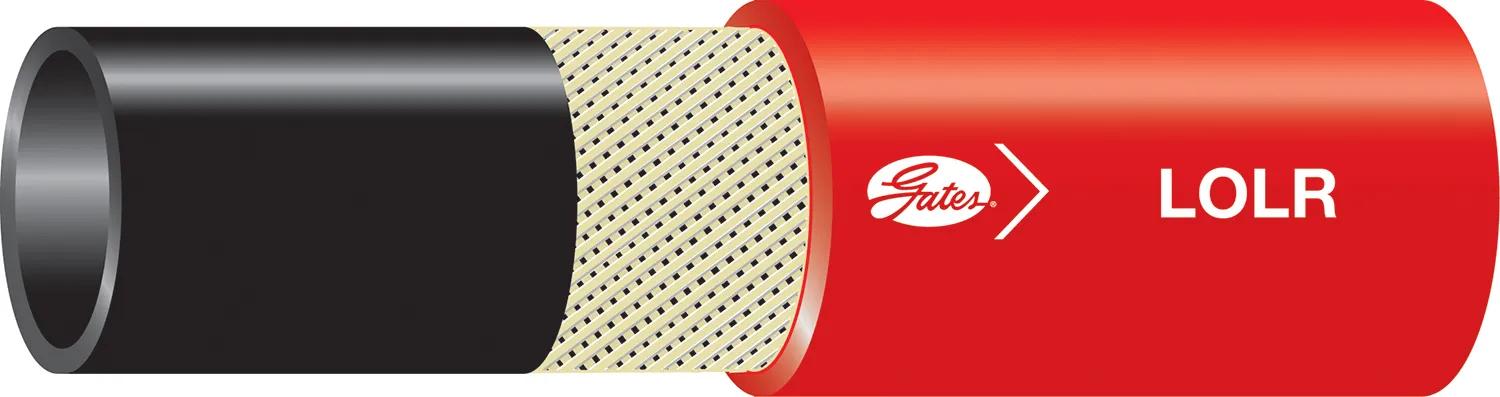

| Product Type | LOL Plus Lock-On Hose |
| Radius | 5 in (12.7 cm) |
| Reinforcement | One Fiber Braid |
| Temperature Range | -40°F @ 212°F, @ 160°F (Air) |
| Tube Description | Black, Highly Heat & Oil-Resistant, Synthetic Rubber |
| Type | Low Pressure |
| Vacuum Rating | 28 inhg (13.76 psi) |
Interchanges & Equivalent parts:
| IGRED08X500 |
| UGRED08X500 |
| H20108RD250R |
| 8018REDBX |
| 8018REDRL |
| 70675 |
| 8LOLRXREEL |
| 04030365 |
| 32842545 |
