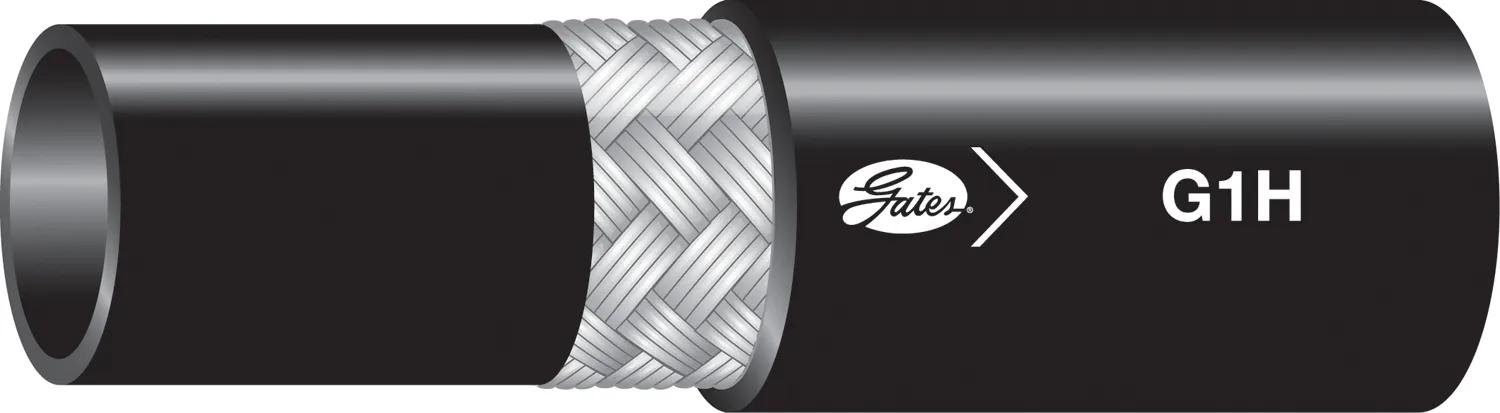

Hydraulic Hose, Le: 50 pi, ID: 1 in
#GAT70211
Product Overview
Recommended for High-Temperature, Medium-Pressure Hydraulic Oil Lines. Meets or Exceeds Requirements of SAE 100R1 Type AT. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -40 Deg F - +275 Deg F (-40 Deg C - +135 Deg C) Constant; +300 Deg F (+149 Deg C) Intermittent (Up to 10% of Operating Time).
- Recommended Couplings: GlobalSpiral, GlobalSpiral Plus, MegaCrimp & Stainless Steel B (Sizes 4-12, 20 & 32).
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - CSM - Type M |
| Cover Type | Type M - Flame, Oil & Abrasion Resistant |
| Dash Size | 20 |
| Industrial Description | 20G1HXCTN |
| Inside Diameter 1 (in) | 1 in (2.54 cm) |
| Length | 50 ft (15.24 m) |
| Maximum Pressure | 925 psi (63.78 bar) |
| Minimum Burst Pressure (PSI) | 3700 psi (255.1 bar) |
| Outside Diameter | 1-45/64 in (4.32 cm) |
| Product Type | Global G1H 1-Wire Braid Hose - High-Temp - SAE 100R1 Type AT |
| Radius | 16 in (40.64 cm) |
| Reinforcement | One Braid of High-Tensile Steel Wire |
| Standard | SAE 100R1 |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Medium Pressure |
Interchanges & Equivalent parts:
| 421HT20 |
| HR1SN20X100 |
| HR1SN20X100CL |
| GH19420 |
| MX20 |
| 70211 |
| 20G1HXCTN |
| GH194-20 |
| H19020 |
| 42620 |
| 04030110 |
| 46570940 |
