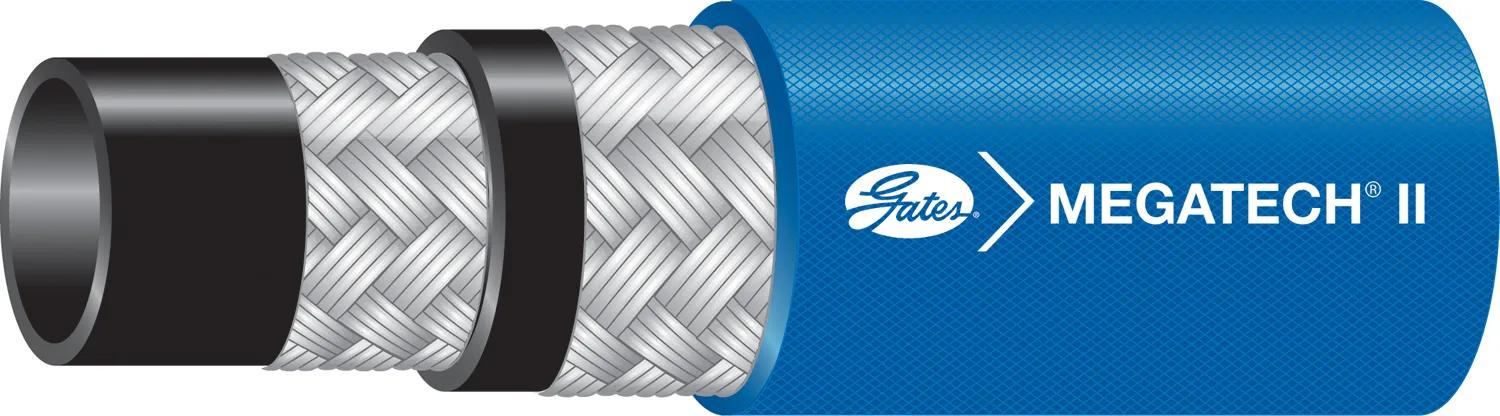

Hydraulic Hose, Le: 50 pi, ID: 1 in
#GAT70975
Product Overview
Recommended for Multi-Purpose High-Pressure, High-Temperature, Air Compressor Lines, PetroleumûBase or Phosphate Ester Hydraulic Fluid Supply Lines. Meets or Exceeds the Requirements of SAE 100R2 & SAE 100R2 Type S.
Features & Benefits
- Temperature Range: -40 Deg F - +300 Deg F (-40 Deg C - +149 Deg C). Recommended Couplings: GlobalSpiral Plus, MegaCrimp (Size 20) & Stainless Steel B (Sizes 24 & 32).
Specifications
| Color | Blue |
| Coupling Recommendation | MegaCrimp |
| Cover Material | Oil & Abrasion Resistant - Polyester Braid |
| Cover Type | Braided |
| Dash Size | 20 |
| Industrial Description | 20ACPMEGATECHIIXCTN |
| Inside Diameter 1 (in) | 1 in (2.54 cm) |
| Length | 50 ft (15.24 m) |
| Maximum Pressure | 2250 psi (155.13 bar) |
| Minimum Burst Pressure (PSI) | 9000 psi (620.52 bar) |
| Outside Diameter | 1-57/64 in (4.8 cm) |
| Product Type | MegaTech II - SAE 100R2 Type AT |
| Radius | 15 in (38.1 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R2 |
| Temperature Range | -40°F @ 300°F (-40°C @ 149°C) |
| Tube Description | Black, Oil Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| 70975 |
| 20ACPMEGATECHIIXCTN |
| 04030136 |
| 46578018 |
